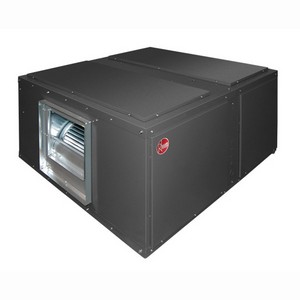

Rheem® RHGM Commercial R-410A Air Handler, 10 Ton

Rheem® RHGM Commercial R-410A Air Handler, 10 Ton



Rheem Sales Company RHGM-120ZL

  • Mfg.Part # : RHGM-120ZL
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHGM120ZL
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • CABINET-Powder coat painted. Matching discharge plenums and decorative supply and return air grilles are available for use when units are to be installed within conditioned space.
  • MOTOR-Inherently protected motors are mounted inside of insulatedcabinet to reduce motor noise. A choice of motor horsepowersand drive combinations are available to allow you to meetspecified CFM at various static pressures up to 2" [.498 kPa]external static pressure.
  • LOW PROFILE-Allows for horizontal installation in most standard drop ceiling applications, and the movement of units through most standard doorways for addition or replacement work.
  • THERMAL EXPANSION VALVES-Standard all models.
  • FILTERS-One inch [25 mm] throwaway filters are standard, butfilter racks are designed to accept either one inch [25 mm] or twoinch [51 mm] filters.
  • EVAPORATOR COIL-Two circuit, interlaced row split coils areconstructed with copper tubes and aluminum fins mechanicallybonded to the tubes for maximum heat transfer capabilities. All coilassemblies are leak tested up to 450 PSIG [3100 kPa] internalpressure prior to installation into units.
  • EVAPORATOR COIL-Two circuit, interlaced row split coils areconstructed with copper tubes and aluminum fins mechanicallybonded to the tubes for maximum heat transfer capabilities. All coilassemblies are leak tested up to 450 PSIG [3100 kPa] internalpressure prior to installation into units. Units may be used with two straight cool condensing units orsingle circuit manifolded in the field using the copper fittingsshipped with each unit. The RHGM Air Handler has not beentested, rated or certified to operate with dual remote heat pumps.
  • Units may be used with two straight cool condensing units orsingle circuit manifolded in the field using the copper fittingsshipped with each unit. The RHGM Air Handler has not beentested, rated or certified to operate with dual remote heat pumps.
  • SERVICE ACCESS-Two removable panels on top and eachside of the unit are easily removed for access to motors, blowers,sheaves, and filters.
  • HORIZONTAL OR VERTICAL-All models are designed foreither application and can be installed in either position assupplied from the factory
  • TESTING-All units are run tested at the factory prior to shipment.Units are shipped with a holding charge of nitrogen.
  • HEAT PUMP-The RHGM-120 Air Handler is designed for heatpump and air conditioning applications. It has two TX valves withinternal check valves that allow reverse flow to occur, providingsuperior control during heating and cooling cycles. RHGM-120 AirHandler has been rated and certified to operate with 7.5 ton[26 kW] and 10 ton [35 kW] condensing units and 7.5 ton [26 kW]and 10 ton [35 kW] remote heat pumps. A 7.5 ton [26 kW] heatpump air handler is NOT available.

Air Handler, Commercial, Nominal Capacity: 10 ton, Filter Size: 16 inch x 25 inch x 1 inch, 208 to 230/460V Volt, 3-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 4000 cfm, 31-1/2 inch Width, 56 inch Height, 57-1/4 inch Depth, Standards: UL Listed, ARI Certified, 1725 rpm RPM, Horse Power: 2 HP, R-410A Refrigerant

  • Type: Commercial
  • Nominal Capacity: 10 ton
  • Filter Size: 16 inch x 25 inch x 1 inch
  • Voltage Rating: 208 to 230/460V
  • Phase: 3-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • CFM: 4000 cfm
  • Width: 31-1/2 inch
  • Height: 56 inch
  • Depth: 57-1/4 inch
  • Horse Power: 2 HP
  • RPM: 1725 rpm
  • Refrigerant: R-410A
  • Drive Package: Standard
  • Warranty: 10 yr.
  • Standards: UL Listed, ARI Certified
