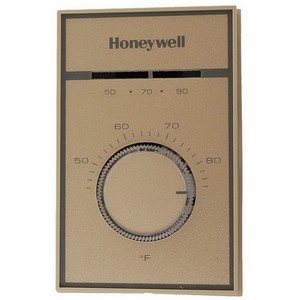

Honeywell Non-Programmable Line Voltage 1 Heat/1 Cool Thermostat, Champagne Gold Face-Plate With Beige Cover

Honeywell Non-Programmable Line Voltage 1 Heat/1 Cool Thermostat, Champagne Gold Face-Plate With Beige Cover



Honeywell International T651A3018

  • Mfg.Part # : T651A3018
  • Mfg.Name : Honeywell International
  • Part # : HWT651A3018
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Light and Medium Duty Line Voltage Thermostats control line voltage valves, motors, contractors, electric heat, elements, duct furnaces, and fan coil units in heating/cooling systems


  • Vertical mounting on 2 inch x 4 inch NEMA-standard single-gang outlet box
  • Range stops/locking cover security features for public areas
  • Industrial grade MICRO SWITCH™ mechanism rated 1/2 hp inductive, 5 kW resistive
  • High-sensitivity, vapor-filled stainless steel dual diaphragm sensing element
  • Engineering plastic base to isolate sensor from switch heat and minimize droop
  • Deluxe styling for commercial buildings
  • Color-coded leadwire connections
  • Altitude compensation
  • 44 Deg F (7 Deg C) frost protection setting for heating application, independent of calibration or altitude

Thermostat, Non-Programmable, Line Voltage, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 44 to 86 Deg F, 120 to 277VAC Volt, Standard Vertical or Horizontal Outlet Box Mount, Champagne Gold Face-Plate with Beige Cover, 4-1/2 inch Height, 2-15/16 inch Width, 1-1/2 inch Depth, Includes: Vertical Scaleplate with Thermometer, Horizontal Scaleplate with no Thermometer, Range Stops and Locking Screws, Wall Plate, and High Accuracy Dual Diaphragm Sensor, Standards: CSA Certified, For Use With: Heavy-Duty Line Voltage Heating Systems, Differential Temperature: 2 Deg F, 50 to 60 Hz Frequency, Vapor Filled Dual Diaphragm Sensor Element, Heating and Cooling System Switching

  • Type: Non-Programmable, Line Voltage
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Temperature Setting: 44 to 86 Deg F
  • Voltage Rating: 120 to 277VAC
  • Mounting: Standard Vertical or Horizontal Outlet Box
  • Color: Champagne Gold Face-Plate with Beige Cover
  • Height: 4-1/2 inch
  • Width: 2-15/16 inch
  • Depth: 1-1/2 inch
  • For Use With: Heavy-Duty Line Voltage Heating Systems
  • Differential Temperature: 2 Deg F
  • Sensor Element: Vapor Filled Dual Diaphragm
  • System Switching: Heating and Cooling
  • Frequency Rating: 50 to 60 Hz
  • Switching Action: SPDT - Breaks Heating And Makes Cooling On Temperature Rise
  • Includes: Vertical Scaleplate with Thermometer, Horizontal Scaleplate with no Thermometer, Range Stops and Locking Screws, Wall Plate, and High Accuracy Dual Diaphragm Sensor
  • Standards: CSA Certified
