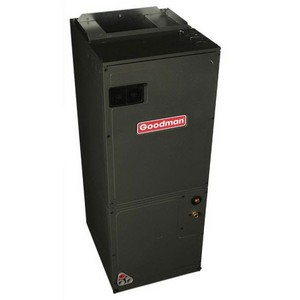

Goodman® SmartFrame™ AVPTC Multi-Position Variable-Speed 13 SEER R-410A Air Handler, 2.5 Ton

Goodman® SmartFrame™ AVPTC Multi-Position Variable-Speed 13 SEER R-410A Air Handler, 2.5 Ton



Goodman Manufacturing AVPTC30C14

  • Mfg.Part # : AVPTC30C14
  • Mfg.Name : Goodman Manufacturing
  • Part # : GDMAVPTC30C14
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Variable-speed ECM blower motor
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Rigid SmartFrame™ cabinet
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • Provides adjustable low CFM for efficient fan-only operation
  • Pan with secondary drain connections
  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Improved humidity and comfort control
  • Horizontal or vertical configuration capabilities
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Fault recall of six most recent faults
  • DecaBDE-free thermoplastic drain
  • ComfortNet™ communicating system compatible
  • CFM indicator
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • Auto configuration of the airflow and tonnage in communicating mode
  • All-aluminum evaporator coil
  • 3 kW - 25 kW electric heater kits
  • 21 inch depth for easier attic access

Air Handler, Multi-Position Variable-Speed, Nominal Capacity: 2.5 ton, 208/230V Volt, 4.9A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 17.6875 inch Return Air Opening Depth, 19-1/2 inch Return Air Opening Width, Suction Line Size: 7/8 inch, Liquid Line Size: 3/8 inch, 11-9/32 inch Supply Opening Depth, 19-15/16 inch Supply Opening Width, 21 inch Width, 49 inch Height, 21 inch Depth, Standards: AHRI Certified, ETL Listed, Includes: Variable-speed ECM Blower Motor, Horse Power: 1/2 HP, R-410A Refrigerant, 3.9A Motor Amps

  • Sub Brand: SmartFrame™
  • Type: Multi-Position Variable-Speed
  • Nominal Capacity: 2.5 ton
  • Voltage Rating: 208/230V
  • Amperage Rating: 4.9A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • Return Air Opening Depth: 17.6875 inch
  • Return Air Opening Width: 19-1/2 inch
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Supply Opening Depth: 11-9/32 inch
  • Supply Opening Width: 19-15/16 inch
  • Width: 21 inch
  • Height: 49 inch
  • Depth: 21 inch
  • Horse Power: 1/2 HP
  • Motor Amps: 3.9A
  • Refrigerant: R-410A
  • Warranty: 10 yr.
  • Includes: Variable-speed ECM Blower Motor
  • Standards: AHRI Certified, ETL Listed
