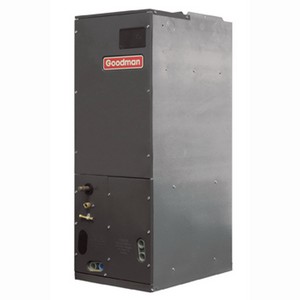

Goodman® SmartFrame™ ARUF Multi-Speed Galvanized Steel R-410A Air Handler, 5 Ton

Goodman® SmartFrame™ ARUF Multi-Speed Galvanized Steel R-410A Air Handler, 5 Ton



Goodman Manufacturing ARUF60D14

  • Mfg.Part # : ARUF60D14
  • Mfg.Name : Goodman Manufacturing
  • Part # : GDMARUF60D14
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Transformer and blower time-delay on all units
  • Tool-less filter access accommodates standard-size filters
  • Screw-less sides and back prevents condensation
  • Power supply entry at top, low-voltage entry at top and on left side
  • New rigid SmartFrame™ cabinet
  • Multi-position capability upflow, downflow, horizontal or vertical
  • Multiple electrical knockouts
  • Heavy-gauge bottom plate
  • Glue-less cabinet insulation retention
  • Galvanized leather grain-embossed finish
  • Easy single-bulb UV light compatibility
  • Easily convertible 4-way design
  • Direct-drive, multi-speed motor
  • Complies with the factory-sealed air handling credit with or without field-installed filter kits as listed in the 2001 florida building code, chapter 13, section 610.2.A.2.1
  • Coil-mounting track for quick repositioning
  • Check flowrater expansion device for cooling-only and heat pump application
  • All-aluminum evaporator coil
  • 21 inch depth for easy attic access

Air Handler, Multi-Speed, Nominal Capacity: 5 ton, 208/240V Volt, 6/6A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 1455 to 2125 cfm, 19-1/2 inch Return Air Opening Depth, 21-1/5 inch Return Air Opening Width, Suction Line Size: 7/8 inch, Liquid Line Size: 3/8 inch, 11-3/8 inch Supply Opening Depth, 23-5/16 inch Supply Opening Width, Galvanized Steel, Leather Grain-Embossed Finish, 24-1/2 inch Width, 58 inch Height, 21 inch Depth, Standards: AHRI Certified, ETL Listed, Includes: Multi-Position PSC Motor, Horse Power: 3/4 HP, R-410A Refrigerant, 4.6A Motor Amps

  • Sub Brand: SmartFrame™
  • Type: Multi-Speed
  • Nominal Capacity: 5 ton
  • Voltage Rating: 208/240V
  • Amperage Rating: 6/6A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • CFM: 1455 to 2125 cfm
  • Return Air Opening Depth: 19-1/2 inch
  • Return Air Opening Width: 21-1/5 inch
  • Suction Line Size: 7/8 inch
  • Material: Galvanized Steel
  • Liquid Line Size: 3/8 inch
  • Finish: Leather Grain-Embossed
  • Supply Opening Depth: 11-3/8 inch
  • Supply Opening Width: 23-5/16 inch
  • Width: 24-1/2 inch
  • Height: 58 inch
  • Depth: 21 inch
  • Horse Power: 3/4 HP
  • Motor Amps: 4.6A
  • Refrigerant: R-410A
  • Mount: Wall Mount
  • Includes: Multi-Position PSC Motor
  • Standards: AHRI Certified, ETL Listed
