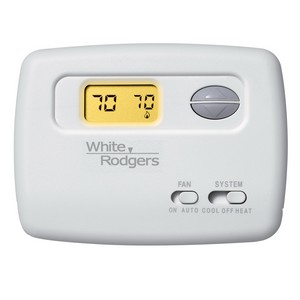

White-Rodgers™ 70 1 Heat/1 Cool Non-Programmable Digital Thermostat, White

White-Rodgers™ 70 1 Heat/1 Cool Non-Programmable Digital Thermostat, White



Emerson Climate Technologies 1F78-144

  • Mfg.Part # : 1F78-144
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F78144
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The White-Rodgers 1F78-144 single stage thermostat has an easy to read digital display. The 1F78-144 thermostat is a non-programmable thermostat. The 1F78-144 thermostat will work on most single stage systems. For use on 24 volt and millivolt systems


  • Fossil fuel or electric heat compatible
  • Large LCD with backlight
  • Selectable Celsius or Fahrenheit temperature display
  • Includes B/O terminals
  • Electronic accuracy

Thermostat, Non-Programmable, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 45 to 90 Deg F, Terminal Designation: RC, RH, W, Y, G, O, B, Large LCD with Backlight Display, Low Battery Indicator, Batteries Included, Battery Power Source, 20 to 30VAC Volt, Horizontal Box Mount, White, 3-13/16 inch Height, 5-1/8 inch Width, 1-1/8 inch Depth, Includes: (2) AAA Energizer® Batteries, Standards: NEC Class II, For Use With: Single Stage Heating And Cooling Systems, Differential Temperature: 0.6 to 1.9 Deg F, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Cool-Off- Heat System Switching

  • Type: Non-Programmable
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Temperature Setting: 45 to 90 Deg F
  • Terminal Designation: RC, RH, W, Y, G, O, B
  • Display: Large LCD with Backlight
  • Low Battery Indicator: Yes
  • Batteries Included: Yes
  • Power Source: Battery
  • Voltage Rating: 20 to 30VAC
  • Mounting: Horizontal Box
  • Color: White
  • Height: 3-13/16 inch
  • Width: 5-1/8 inch
  • Depth: 1-1/8 inch
  • Fan Switching: Auto-On
  • For Use With: Single Stage Heating And Cooling Systems
  • Differential Temperature: 0.6 to 1.9 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Cool-Off- Heat
  • Frequency Rating: 50 to 60 Hz
  • Operating Ambient temperature: 32 to 105 Deg F
  • Includes: (2) AAA Energizer® Batteries
  • Standards: NEC Class II
