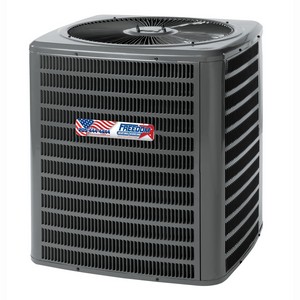

Goodman® GSZ13 13-SEER R-410A Split System Heat Pump, 4 Ton, 48000 Btu/h

Goodman® GSZ13 13-SEER R-410A Split System Heat Pump, 4 Ton, 48000 Btu/h



Goodman Manufacturing GSZ130481

  • Mfg.Part # : GSZ130481
  • Mfg.Name : Goodman Manufacturing
  • Part # : GDMGSZ130481
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

GSZ13 Heat Pump uses the chlorine-free refrigerant R-410A and features operating sound levels that are among the best we offer in the heating and cooling industry. With its 13 SEER rating, the GSZ13 will help reduce energy consumption throughout the life of the system compared to units with a lower SEER


  • When properly anchored, meets the 2010 florida building code unit integrity requirements for hurricane-type winds (anchor bracket kits available)
  • Top and side maintenance access
  • Steel louver coil guard
  • SmartShift® technology to ensure quiet reliable defrost
  • Service valves with sweat connections and easy access to gauge ports
  • Service ports and controls are accessible while unit is operating
  • R-410A chlorine-free refrigerant
  • High-efficiency scroll compressor
  • High and low pressure switches
  • Heavy-gauge galvanized-steel cabinet
  • Ground lug connection
  • Goodman® brand sound control top design
  • Fully charged for 15 ft of tubing length
  • Factory-installed suction-line accumulator
  • Factory-installed high-capacity muffler
  • Factory-installed compressor crankcase heater
  • Factory-installed bi-flow liquid-line filter drier
  • Copper tube/enhanced aluminum fin coil
  • Contactor with lug connection
  • Attractive architectural gray powder-paint finish with 500-hour salt-spray approval

Heat Pump, Split System, GSZ13 Series, R-410A Unit, Cooling Capacity: 48000 BTUH, 13 SEER, Capacity in Ton: 4 ton, Horse Power: 1/4 HP, 208/230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 26.4A, 45A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Dimensions: 29 inch W x 29 inch D x 34-1/4 inch H, Standards: AHRI Certified, ETL Listed, 202 lb Weight, 10 yr Limited on Parts, 10 yr on Compressor Warranty

  • Series: GSZ13
  • Type: Split System
  • Unit Type: R-410A
  • Cooling Capacity: 48000 BTUH
  • SEER: 13
  • Voltage Rating: 197-253V
  • Voltage Rating: 208/230V
  • Capacity in Ton: 4 ton
  • Phase: 1-Phase
  • Horse Power: 1/4 HP
  • Frequency Rating: 60 Hz
  • Min. Circuit Amp: 26.4A
  • Max. Fuse Amp: 45A
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Dimensions: 29 inch W x 29 inch D x 34-1/4 inch H
  • Energy Star: No
  • Weight: 202 lb
  • Warranty: 10 yr Limited on Parts, 10 yr on Compressor
  • Compressor Type: Scroll
  • Full Load Amperage: 1.50A
  • Load Rotor Amperage: 109A
  • Rated Load Amperage[Compressor]: 19.9A
  • Refrigerant Charge: 204 oz
  • Valve Connection Type: Sweat
  • Standards: AHRI Certified, ETL Listed
