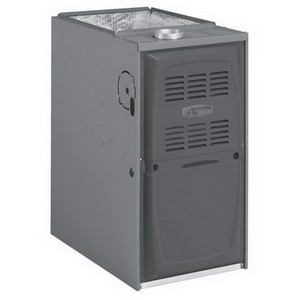

Armstrong™ 66W39 80% AFUE Upflow/Horizontal Variable Speed Gas Furnace, 3 Ton, 88000 BTU/h, 17-1/2 inch x 33 inch x 28-3/8 inch

Armstrong™ 66W39 80% AFUE Upflow/Horizontal Variable Speed Gas Furnace, 3 Ton, 88000 BTU/h, 17-1/2 inch x 33 inch x 28-3/8 inch



Allied Air Enterprises A80UH2V090B12

  • Mfg.Part # : A80UH2V090B12
  • Mfg.Name : Allied Air Enterprises
  • Part # : ARA80UH2V090B12
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Zero step horizontal conversion
  • Standardized widths for easy coil fit
  • Self diagnostics saves last 5 fault codes regardless of power interruption
  • Rotatable draft inducer for venting flexibility
  • Removable floor base for bottom return air
  • Left and right utility connections
  • ECM™ Variable speed blower motor
  • Easily removable slide out blower design
  • Aluminized steel tapered crimped no-weld clam shell heat exchanger design

Gas Furnace, Variable Speed, Upflow/Horizontal Airflow, 80% AFUE, 80% Efficiency, Capacity in Ton: 3 ton, 982 to 1632 cfm at 0.50 inch W.C. Bottom Inlet, 974 to 1602 cfm at 0.50 inch W.C. Side Inlet CFM, Heating Capacity Input: 88000 BTUH, Heating Capacity Output: 70400 BTUH, 40 to 70 Deg F Temp. Rise, Horse Power: 1/2 HP, Aluminized Heat Exchanger, Construction: Two Stage, Transformer Rating: 40VA, Warm Air Supply Dimension: 23 inch x 14 inch, 4-3/4 inch Centerline - Flue to Side (E), Electrical Supply: 12V, 60 Hz, Single Phase, 17-1/2 inch Width, 33 inch Height, 28-3/8 inch Depth, 1/2 inch Gas Connection, Nominal FLA: 7.7A, Time Delay Breaker or Fuse: 15A Max., Blower Size: 10 inch x 9 inch, 10 yr Warranty

  • Type: Variable Speed
  • Airflow: Upflow/Horizontal
  • AFUE: 80%
  • Efficiency: 80%
  • Capacity in Ton: 3 ton
  • CFM: 982 to 1632 cfm at 0.50 inch W.C. Bottom Inlet, 974 to 1602 cfm at 0.50 inch W.C. Side Inlet
  • Heating Capacity Input: 88000 BTUH
  • Height: 33 inch
  • Heating Capacity Output: 70400 BTUH
  • Temperature Rise: 40 to 70 Deg F
  • Width: 17-1/2 inch
  • Horse Power: 1/2 HP
  • Material: Aluminized Heat Exchanger
  • Construction: Two Stage
  • Transformer Rating: 40VA
  • Warm Air Supply Dimension: 23 inch x 14 inch
  • Centerline - Flue to Side (E): 4-3/4 inch
  • Electrical Supply: 12V, 60 Hz, Single Phase
  • Depth: 28-3/8 inch
  • Gas Connection: 1/2 inch
  • Warranty: 10 yr
  • Nominal FLA: 7.7A
  • Time Delay Breaker or Fuse: 15A Max.
  • Blower Size: 10 inch x 9 inch
  • Airflow Dimension: A:17-1/2 inch, B:16-3/8 inch, C:16 inch
