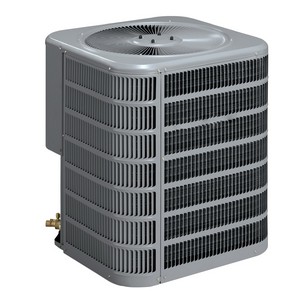

Concord® 4HP13L 13-SEER R-410A Louvered Heat Pump, 5 Ton, 60000 BtuH

Concord® 4HP13L 13-SEER R-410A Louvered Heat Pump, 5 Ton, 60000 BtuH



Allied Air Enterprises 4HP13L60P

  • Mfg.Part # : 4HP13L60P
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4HP13L60P
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Top discharge directs hot air and sound away from living area and shrubbery
  • Short cycle protection factory installed
  • Reliable, solid state time/temperature defrost control, with field selectable 30/60/90 minute intervals
  • R410A refrigerant
  • Low pressure switch factory installed for loss of charge protection
  • Integrated control with LED diagnostics
  • High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
  • Easy access to electrical panels, pre-wired for easy hook-up
  • Discharge muffler for quiet operation
  • Defrost control is Quiet Shift™ capable
  • Charged for 15 ft of interconnecting tubing
  • Bi-directional liquid line filter drier factory installed
  • Available with louvered panel or wire guard coil protection option
  • All units run tested
  • All units are ETL and ETLC approved and AHRI certified

Heat Pump, Louvered, 4HP13L Series, Cooling Capacity: 60000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 5 ton, Horse Power: 1/3 HP, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 36.3A, 60A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 80 dBa, Dimensions: 41 inch H x 30 inch D x 30 inch W, Standards: ETL Listed, AHRI Cirtified, 279 lb Weight, 10 yr Warranty

  • Series: 4HP13L
  • Type: Louvered
  • Cooling Capacity: 60000 BTUH
  • SEER: 13
  • Voltage Rating: 208 to 230V
  • EER: 11
  • Capacity in Ton: 5 ton
  • Phase: 1-Phase
  • Horse Power: 1/3 HP
  • Hertz: 60 Hz
  • Min. Circuit Amp: 36.3A
  • Max. Fuse Amp: 60A
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Sound Rating: 80 dBa
  • Dimensions: 41 inch H x 30 inch D x 30 inch W
  • Energy Star: No
  • Weight: 279 lb
  • Warranty: 10 yr
  • Refrigerant Type: R-410A
  • Nominal RPM: 825
  • Standards: ETL Listed, AHRI Cirtified
