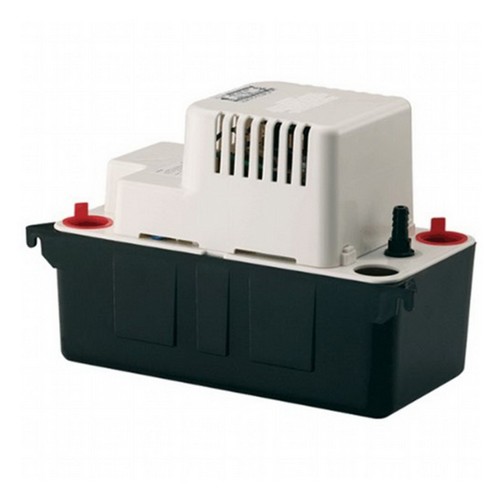

Franklin® VCMA-20 Automatic Condensate Removal Pump, 75W, 230V, 1.5A

Franklin® VCMA-20 Automatic Condensate Removal Pump, 75W, 230V, 1.5A



Little Giant Pump Company 554451

  • Mfg.Part # : 554451
  • Mfg.Name : Little Giant Pump Company
  • Part # : LGVCMA20UL
  • UPC # : 010121544215
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical. Also suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment


  • Vertical centrifugal pump design
  • Automatic start and stop operation
  • Some models equipped with float solid polymer activated switch for automatic high level water detection safety overflow switch
  • Thermally protected, fan cooled motor
  • Built-in wall mount tabs on tank

Condensate Removal Pump, Automatic, Tank Capacity: 0.5 gal, 80 gph at 1 ft of Head Flow Rate, 140 Deg F Operating Temp., Wattage Rating: 75W, 230V, 50/60 Hz Power Supply, Built-in Wall Mount, Dimensions: 11 inch L x 7 inch W x 5 inch H, Standards: UL Listed and CSA Certified

  • Type: Automatic
  • Tank Capacity: 0.5 gal
  • Wattage Rating: 75W
  • Ampere Rating: 1.5A
  • Flow Rate: 80 gph at 1 ft of Head
  • Operating Temperature: 140 Deg F
  • Shaft Material: Stainless Steel
  • Weight: 5.00 lb
  • Power Supply: 230V, 50/60 Hz
  • Mounting: Built-in Wall
  • Dimensions: 11 inch L x 7 inch W x 5 inch H
  • Horsepower: 1/30
  • Cord Lenght: 6 ft
  • Shut Off: 20
  • Float Material: Polypropylene
  • Pressure: 7.4 psi
  • Standards: UL Listed and CSA Certified
