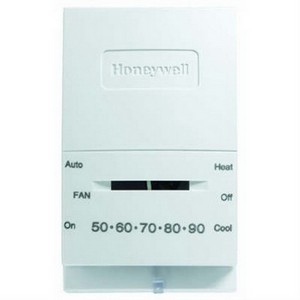

Honeywell Non-Programmable Mercury Free 1 Heat/1 Cool Thermostat, White

Honeywell Non-Programmable Mercury Free 1 Heat/1 Cool Thermostat, White



Honeywell International T834N1002

  • Mfg.Part # : T834N1002
  • Mfg.Name : Honeywell International
  • Part # : HWT834N1002
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Meet all current and future mercury-free thermostat compliance needs with Honeywell’s Mercury-Free Econostat. With a sleek, attractive appearance, the Mercury-Free Econostat is the perfect electromechanical replacement choice


  • Precise Snap-action switch
  • Mount directly on wall or outlet box
  • Integrated thermometer and temperature setting scale
  • Includes dealer logo pocket

Thermostat, Non-Programmable, Mercury Free, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 45 to 95 Deg F, Terminal Designation: R, Rc, W, Y, G, O, B, Hardwired Power Source, 20 to 30VAC Volt, Vertical Mount, White, 4-3/4 inch Height, 2-7/8 inch Width, 1-3/8 inch Depth, Includes: Dealer Logo Pocket, For Use With: Conventional Systems and Heat Pumps with No Auxiliary Heat, Cool Current: 0.02 to 1A Running, 0.02 to 0.6A Fan Current, Auto-On Fan Switching, 0.02 to 1A Running Heat Current, Humidity Range: 5 to 90% RH, Bi-Metal Sensor Element, Heat-Off-Cool System Switching

  • Type: Non-Programmable, Mercury Free
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Temperature Setting: 45 to 95 Deg F
  • Terminal Designation: R, Rc, W, Y, G, O, B
  • Power Source: Hardwired
  • Voltage Rating: 20 to 30VAC
  • Mounting: Vertical
  • Color: White
  • Height: 4-3/4 inch
  • Width: 2-7/8 inch
  • Depth: 1-3/8 inch
  • Fan Switching: Auto-On
  • For Use With: Conventional Systems and Heat Pumps with No Auxiliary Heat
  • Cool Current: 0.02 to 1A Running
  • Humidity Range: 5 to 90% RH
  • Fan Current: 0.02 to 0.6A
  • Sensor Element: Bi-Metal
  • System Switching: Heat-Off-Cool
  • Heat Current: 0.02 to 1A Running
  • Switch Type: Precision Snap action
  • Operating Ambient temperature: 0 to 120 Deg F
  • Switching Action: SPST
  • User Interface: Mechanical
  • Includes: Dealer Logo Pocket
