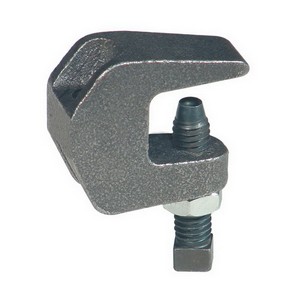

Anvil 92 Galvanized Ductile Iron C-Type Universal Beam Clamp, 1/2 inch, 1-13/16 inch

Anvil 92 Galvanized Ductile Iron C-Type Universal Beam Clamp, 1/2 inch, 1-13/16 inch



Anvil International GUCCLD

  • Mfg.Part # : GUCCLD
  • Mfg.Name : Anvil International
  • Part # : GUCCLD
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Thru tapping of the body casting permits extended adjustment of the threaded rod
  • They may be attached to horizontal flanges of structural members in either the top beam or bottom beam positions
  • Secured in place by a cup-pointed set screw tightened against the flange
  • A jam nut is provided for tightening the set screw against the body casting

Beam Clamp, C-Type, Universal, Nominal Size: 1/2 inch, 1-13/16 inch Length, Ductile Iron, Galvanized Finish, Standards: A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69 and MSS SP-58 (Type 19 & 23), UL, ULC Listed and FM Approved

  • Type: C-Type, Universal
  • Nominal Size: 1/2 inch
  • Material: Ductile Iron
  • Finish: Galvanized
  • Length: 1-13/16 inch
  • Max. Load: 950 lb. at Top, 760 lb. at Bottom
  • Pressure Rating: 300 psi
  • Standards: A-A-1192A (Type 19 & 23), WW-H-171-E (Type 23), ANSI/MSS SP-69 and MSS SP-58 (Type 19 & 23), UL, ULC Listed and FM Approved
