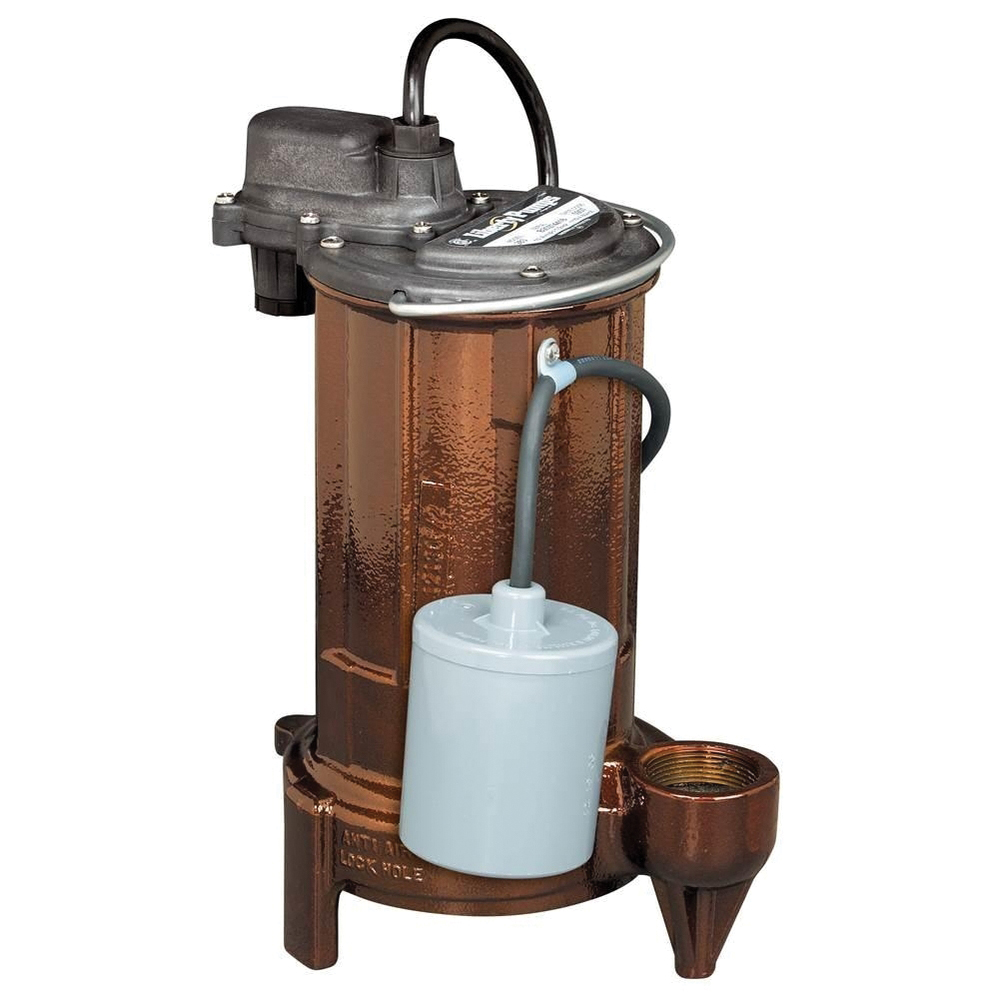

Liberty Pumps® 283 280 1-Phase Submersible Sump Pump, 62 gpm, 1-1/2 in Outlet, 1/2 hp, Cast Iron, Import

Liberty Pumps® 283 280 1-Phase Submersible Sump Pump, 62 gpm, 1-1/2 in Outlet, 1/2 hp, Cast Iron, Import



Liberty Pumps 283

  • Mfg.Part # : 283
  • Mfg.Name : Liberty Pumps
  • Part # : LIB283
  • UPC # : 671812002836
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • 3/4 in solids handling
  • Liberty's unique, one-piece "Uni-Body" casting
  • Quick-disconnect 10 ft standard power cord allows replacement of cord in seconds without breaking seals to motor
  • Permanently lubricated upper and lower bearings
  • Oil-filled, hermetically sealed motors with thermal overload protection
  • 10 ft cord
  • Stainless steel rotor shaft
  • Stainless steel fasteners
  • Class B stator winding
  • Wide angle float switch with series (piggy-back) plug
  • 140 deg F maximum fluid temperature
  • Vortex engineered polymer
  • Automatic operation

With a shut-off head of 37 feet and 3/4" solids-handling capability, the 280-Series by Liberty covers a wide-range of low-head to mid-range pump applications. Designed for STEP systems, mound systems, liquid waste transfer and high output sump applications, you can count on the 280-Series to offer superior performance. Designed with Liberty's unique one-piece cast iron body and quick-disconnect cords available in 10' and 25' lengths. 35' and 50' cords available on some models. See literature for specifics. High-output 1/2 hp submersible with rugged cast iron housing.

Liberty Pumps® Submersible Sump Pump, 1-Phase, Series: 280, 62 gpm, 1-1/2 in Outlet, 37 ft Maximum Head, 1/2 hp, 115 VAC, 8 A, 60 Hz, 3450 rpm Motor, SJTW Cord, Vortex Style Impeller, 221 deg F Overload, Ball/Race Bearing, Cast Iron, 10 in W x 13 in H, Import

  • Type: 1-Phase
  • Ampere Rating: 8.5A
  • Voltage Rating: 115 VAC
  • Voltage Rating: 115VAC
  • Phase: 1
  • Bearing Type: Ball/Race
  • Cord Length: 10 ft
  • GPM of Water at 10 Ft. of Head: 56 gpm
  • GPM of Water at 15 Ft. of Head: 50 gpm
  • GPM of Water at 20 Ft. of Head: 42 gpm
  • GPM Of Water at 25 ft. Of Head: 30 gpm
  • GPM Of Water at 30 ft. Of Head: 23 gpm
  • GPM of Water at 35 Ft. of Head: 10 gpm
  • GPM of Water at 5 Ft. of Head: 62 gpm
  • Height: 13 inch
  • Width: 9-1/2 inch
  • Impeller Material: Vortex Engineered Polymer
  • Housing: Cast Iron
  • Maximum Head: 37 ft
  • Maximum Head: 38 ft
  • Maximum Temperature: 105 Deg C
  • Mechanical Seal: Unitized Ceramic Carbon
  • Sump Pit Diameter: 14 inch
  • Motor Type: Oil Filled, Thermally Protected
  • Shaft Material: Stainless Steel
  • Shaft Seal: Stainless Steel
  • Switch Type: Wide Angle Float
  • Standards: cCSAus Listed
