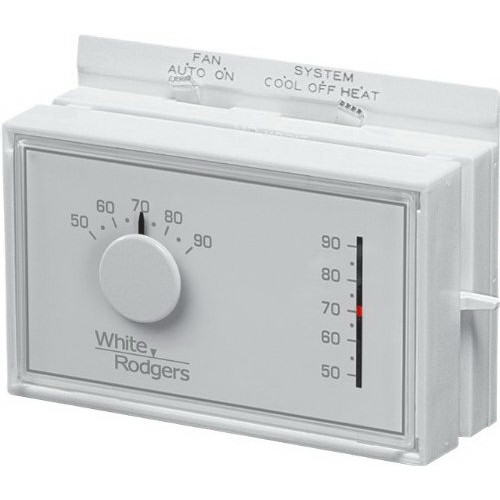

White-Rodgers™ 1F56N-444 Mechanical Thermostat, 50 to 90 Deg F, 24VAC, 1H/1C

White-Rodgers™ 1F56N-444 Mechanical Thermostat, 50 to 90 Deg F, 24VAC, 1H/1C



Emerson Climate Technologies 1F56N-444

  • Mfg.Part # : 1F56N-444
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F56N444
  • UPC # : 786710532030
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Replaces Hundreds of White-Rodgers and Competitive Models. Enclosed Snap Action Contacts for Reliable, Economical and Environmentally Friendly Control


  • Mercury free snap action contacts with dust cover
  • Resistant to vibration
  • Mounts to wall or junction box
  • Built in bimetal thermometer

Mechanical Thermostat, Non-Programmable, Mercury Free, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 50 to 90 Deg F, Terminal Designation: Three Of M1, M4, M6, R, C, W1/E, W2, Y1, Y2, G, O/B, L One Of RH, RC, W1/E, W2, Y1, Y2, G, O, B, DS/BK, R, C, DATS, DATS, Hardwired Power Source, 24VAC Voltage Rating, Horizontal Mount, White, 4-1/2 inch Height, 2-3/4 inch Width, 1-1/2 inch Depth, Includes Heat/Cool only Terminal Wallplate, Standards: NEC Class II, For Use With: Heating, Cooling, Heat Pump without Auxiliary Heat, Millivolt, 3-wire Zone Valve, Cool Current: 0.15 to 1.2A, Differential Temperature: 1 Deg F Heat, 1.5 Deg F Cool, Auto-On Fan Switching, 50/60 Hz Frequency, 0.15 to 1.2A Heat Current, Humidity Range: 0 to 90% Non-Condensing, Heat Cool Off System Switching

  • Type: Non-Programmable, Mercury Free
  • Number of Heat Stages: 1
  • Number of Cool Stages: 1
  • Temperature Setting: 50 to 90 Deg F
  • Terminal Designation: Three Of M1, M4, M6, R, C, W1/E, W2, Y1, Y2, G, O/B, L One Of RH, RC, W1/E, W2, Y1, Y2, G, O, B, DS/BK, R, C, DATS, DATS
  • Width: 2-3/4 inch
  • Color: White
  • Power Source: Hardwired
  • Voltage Rating: 24VAC
  • Mounting: Horizontal
  • Height: 4-1/2 inch
  • Depth: 1-1/2 inch
  • For Use With: Heating, Cooling, Heat Pump without Auxiliary Heat, Millivolt, 3-wire Zone Valve
  • Cool Current: 0.15 to 1.2A
  • Fan Switching: Auto-On
  • Differential Temperature: 1 Deg F Heat, 1.5 Deg F Cool
  • Frequency: 50/60 Hz
  • Heat Current: 0.15 to 1.2A
  • Humidity Range: 0 to 90% Non-Condensing
  • System Switching: Heat Cool Off
  • Includes: Heat/Cool only Terminal Wallplate
  • Standards: NEC Class II
  • Application: For Conventional Gas, Oil and Electric
