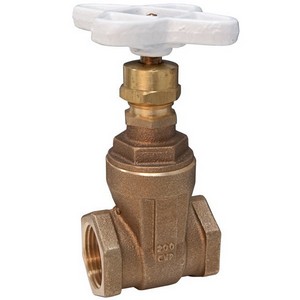

Nibco® T-113-LF Class 125 Lead Free Silicon Bronze Screw-In Bonnet Gate Valve, 1-1/4 inch x 1-1/4 inch, FNPT x FNPT

Nibco® T-113-LF Class 125 Lead Free Silicon Bronze Screw-In Bonnet Gate Valve, 1-1/4 inch x 1-1/4 inch, FNPT x FNPT



Nibco Inc. NT113JLF

  • Mfg.Part # : NT113JLF
  • Mfg.Name : Nibco Inc.
  • Part # : NT113JLF
  • UPC # : 039923309907
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Nibco® gate valve features a screw-in bonnet for service where infrequent maintenance is required. Non-rising stem gate valves are used when positive shutoff is required and a space saving is necessary. The gate valve is constructed of high quality lead-free* dezincification-resistant (DZR) performance bronze silicon alloy per ASTM specifications. The lead-free valve is recommended for applications that deliver water for human consumption, including commercial and residential construction. Female threaded ends allow for ease of installation. The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. Please refer to Nibco technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose Nibco® valves for the most specified, versatile and economical valve option in commercial and residential applications. Nibco® valves are backed by the Nibco INC. 5-year 125% limited warranty.


  • White handle for easy lead-free identification
  • Nibco® double-oval lead-free body marking

Gate Valve, Lead-Free, T-113-LF Series, Nominal Size: 1-1/4 inch x 1-1/4 inch, FNPT x FNPT Connection, Pressure Rating: 300 psi Non-Shock Cold Working Pressure, Silicon Bronze Body, Non-Rising Alloy Stem, Aramid Fibers with Graphite Packing, Screw-In Silicon Bronze Bonnet, Actuation/Operator: Handwheel, Industry Standards: Conform to MSS SP-80, NSF/ANSI 61 and NSF/ANSI 372, Temperature Rating: 300 Deg F, 2.28 lb Weight, Additional Details: Handwheel Nut: 300 Series Stainless Steel, Identification Plate: Aluminum, Handwheel: Malleable Iron, Packing Nut: Bronze Alloy or Brass, Stuffing Box: Silicon Bronze, Wedge: Silicon Bronze, Packaging: 20/Carton, Dimensions: A: 2.63 inch, B: 5.22 inch, C: 1.19 inch, Class #125

  • Series: T-113-LF
  • Type: Lead-Free
  • Nominal Size: 1-1/4 inch x 1-1/4 inch
  • Connection Type: FNPT x FNPT
  • Pressure Rating: 300 psi Non-Shock Cold Working Pressure
  • Body Material: Silicon Bronze
  • Stem: Non-Rising Alloy
  • Packing: Aramid Fibers with Graphite
  • Bonnet: Screw-In Silicon Bronze
  • Actuation/Operator: Handwheel
  • Industry Standards: Conform to MSS SP-80, NSF/ANSI 61 and NSF/ANSI 372
  • Temperature Rating: 300 Deg F
  • Weight: 2.28 lb
  • Additional Information: Handwheel Nut: 300 Series Stainless Steel|Identification Plate: Aluminum|Handwheel: Malleable Iron|Packing Nut: Bronze Alloy or Brass|Stuffing Box: Silicon Bronze|Wedge: Silicon Bronze|Packaging: 20/Carton
  • Class: #125
  • Dimensions: A: 2.63 inch, B: 5.22 inch, C: 1.19 inch
