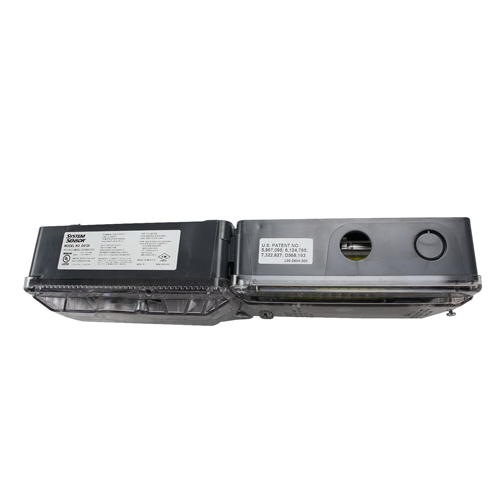

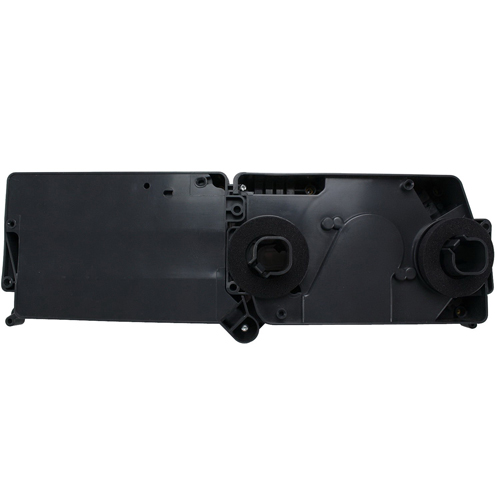

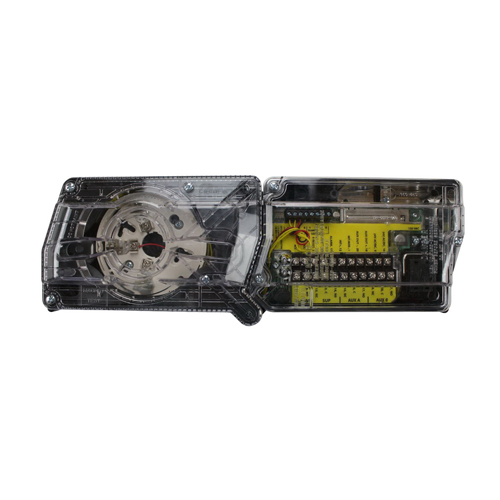

System Sensor® InnovairFlex™ 4-Wire Photoelectric Low-Flow Duct Smoke Detector

System Sensor® InnovairFlex™ 4-Wire Photoelectric Low-Flow Duct Smoke Detector



System Sensor SSD4120

  • Mfg.Part # : SSD4120
  • Mfg.Name : System Sensor
  • Part # : SSD4120
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Photoelectric, integrated low-flow technology
  • Versatile mounting options in square or rectangular configuration with modular construction
  • Plug-in sensor offers superb false alarm immunity with the latest sensor technology
  • Increased wiring space with a newly added 3/4 inch conduit knock out
  • One easy-access test/reset button and improved LED status, field selectable settings for configuring the detector
  • New high contrast terminal designations, backward compatibility with existing Innovair products, including remote accessories

Smoke Detector, 65mA at 24VDC, 135mA RMS at 24VAC, 35mA RMS at 120VAC Power Source, Humidity Range: 0 to 95%, -4 - 158 Deg F Temp. Range, Standards: UL, MSFM Approved, Dimensions: 5 inch W x 14.38 inch L x 2.5 inch D Rectangular, 9 inch W x 7.75 inch L x 2.5 inch D Square

  • Power Source: 65mA at 24VDC, 135mA RMS at 24VAC, 35mA RMS at 120VAC
  • Humidity Range: 0 to 95%
  • Temperature Range: -4 - 158 Deg F
  • Dimensions: 5 inch W x 14.38 inch L x 2.5 inch D Rectangular, 9 inch W x 7.75 inch L x 2.5 inch D Square
  • Alarm Response Time: 2 A At 30VDC 15 sec.
  • Duct Velocity: 100 to 4000 ft./min.
  • Frequency: 50/60 Hz
  • Maximum Input Capacitance: 270 µF
  • Reset Voltage: 3VDC / 2 - 10VAC Reset Voltage
  • Standards: UL, MSFM Approved
