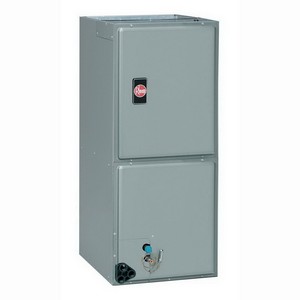

Rheem® RHPL High Efficiency 16 SEER Premium Model Air Handler, 4 Ton

Rheem® RHPL High Efficiency 16 SEER Premium Model Air Handler, 4 Ton



Rheem Sales Company RHPL-HM4824JC

  • Mfg.Part # : RHPL-HM4824JC
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHPLHM4824JC
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The Rheem RHPL Series Air Handler is designed for high performance, exceeding the standard efficiency requirements and, in many cases, enhancing the efficiency rating of your outdoor air conditioning unit. The Rheem RHPL Series Air Handler is designed with a sturdy steel cabinet with one inch of foil-faced insulation, offering excellent thermal and sound insulation. Rheem Air Handlers also feature a flexible design that allows them to meet the needs of a variety of systems. Your contractor will recommend a unit that will best meet your home’s airflow needs. The factory-installed indoor cooling coil is the key component for your air handler. The coil is essential to humidity control and improved system performance, and the high-quality standards used in manufacturing result in fewer maintenance calls.


  • Includes an energy efficient GE® ECM® Motor, that slowlyramps its speed up for quiet operation and enhancedcustomer satisfaction.
  • Versatile 4-way convertible design for upflow, downflow,horizontal left and horizontal right applications
  • Nominal airflow up to 1.0 inch external static pressure
  • Factory-installed high efficiency indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heatfor indoor comfort. Kits include circuit breakers which meetU.L. and cUL requirements for service disconnect.
  • Dip switch settings for selectable, customized cooling airflow over a wide varietyof applications when wired in 24V conventional configurations.
  • On-demand dehumidification terminal that adjusts airflow tohelp control humidity for unsurpassed comfort in coolingmode
  • External filter required.

Air Handler, Premium Model, Nominal Capacity: 4 ton, Filter Size: 25 inch x 25 inch, 208/240V Volt, 4.9A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 9A, 1200 to 1625 cfm, 19-1/2 inch Return Air Opening Depth, 22-7/8 inch Return Air Opening Width, Suction Line Size: 7/8 inch, Liquid Line Size: 3/8 inch, 23 inch Supply Opening Depth, 24-1/2 inch Width, 55-1/2 inch Height, Standards: UL Listed, AHRI Certified, Includes: Comfort Control System and Energy Efficient GE ECM Motor, 300 to 1100 rpm RPM, 21-11/16 inch Length, Horse Power: 3/4 HP, 16 SEER

  • Type: Premium Model
  • Nominal Capacity: 4 ton
  • Filter Size: 25 inch x 25 inch
  • Voltage Rating: 208/240V
  • Amperage Rating: 4.9A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 9A
  • CFM: 1200 to 1625 cfm
  • Return Air Opening Depth: 19-1/2 inch
  • Return Air Opening Width: 22-7/8 inch
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Supply Opening Depth: 23 inch
  • Width: 24-1/2 inch
  • Height: 55-1/2 inch
  • Horse Power: 3/4 HP
  • RPM: 300 to 1100 rpm
  • Length: 21-11/16 inch
  • SEER: 16
  • Warranty: 10 yr.
  • Includes: Comfort Control System and Energy Efficient GE ECM Motor
  • Standards: UL Listed, AHRI Certified
