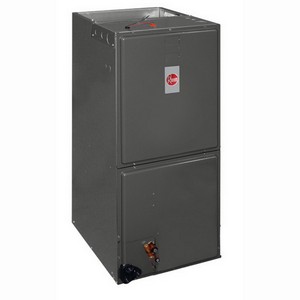

Rheem® RHLL High Efficiency 13 SEER R-410A Air Handler, 4 Ton

Rheem® RHLL High Efficiency 13 SEER R-410A Air Handler, 4 Ton



Rheem Sales Company RHLL-HM4821JA

  • Mfg.Part # : RHLL-HM4821JA
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHLLHM4821JA
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The Rheem RHLL Series Air Handler is designed for high performance, exceeding the standard efficiency requirements and, in many cases, enhancing the efficiency rating of your outdoor air conditioning unit. The Rheem RHLL Series Air Handler is designed with a sturdy steel cabinet with one inch of foil-faced insulation, offering excellent thermal and sound insulation


  • RHLL models feature GE’s new X-13 motor which providesenhanced SEER performance with most Rheem outdoor units
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 551/2 inches [1080 to 1410 mm] tall and 22 inches [559mm] deep
  • Versatile 4-way convertible design for upflow, downflow, horizontalleft and horizontal right applications.
  • Factory-installed high efficiency indoor coil.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] perton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7" external static pressure.
  • Sturdy construction with 1.0 inch [.24 kPa] of reinforced foil facedjacket insulation for excellent thermal and sound insulation.
  • Field-installed auxiliary electric heater kits provide exact heat forindoor comfort. Kits include circuit breakers which meet UL andcUL requirements for service disconnect
  • Attractive pre-painted cabinet exterior
  • Rugged wall steel cabinet construction, designed for added strength and versatility

Air Handler, High-Efficiency, Nominal Capacity: 4 ton, Filter Size: 25 inch x 20 inch, 208/240V Volt, 4A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 1400 to 1600 cfm, 19-3/4 inch Return Air Opening Depth, 19-3/8 inch Return Air Opening Width, Suction Line Size: 7/8 inch, Liquid Line Size: 3/8 inch, 10-5/16 inch Supply Opening Depth, 19-1/2 inch Supply Opening Width, 21 inch Width, 50-1/2 inch Height, 21-11/16 inch Depth, Standards: UL & cUL Listed, AHRI Certified, Includes: X-13 (ECM) Motor, 300 to 1100 rpm RPM, Horse Power: 3/4 HP, R-410A Refrigerant, 13 SEER

  • Type: High-Efficiency
  • Nominal Capacity: 4 ton
  • Filter Size: 25 inch x 20 inch
  • Voltage Rating: 208/240V
  • Amperage Rating: 4A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • CFM: 1400 to 1600 cfm
  • Return Air Opening Depth: 19-3/4 inch
  • Return Air Opening Width: 19-3/8 inch
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Supply Opening Depth: 10-5/16 inch
  • Supply Opening Width: 19-1/2 inch
  • Width: 21 inch
  • Height: 50-1/2 inch
  • Depth: 21-11/16 inch
  • Horse Power: 3/4 HP
  • RPM: 300 to 1100 rpm
  • Refrigerant: R-410A
  • SEER: 13
  • Warranty: 10 yr.
  • Includes: X-13 (ECM) Motor
  • Standards: UL & cUL Listed, AHRI Certified
