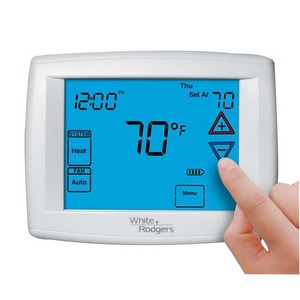

White-Rodgers™ Touchscreen Single Stage Universal 1 Heat/1 Cool Digital Thermostat, White

White-Rodgers™ Touchscreen Single Stage Universal 1 Heat/1 Cool Digital Thermostat, White



Emerson Climate Technologies 1F97-1271

  • Mfg.Part # : 1F97-1271
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F971271
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The New Color of Innovation: White-Rodgers has set a new industry benchmark with the 90 Series Blue Touchscreen. "Blue" advanced technology not only delivers all the best features, it's truly universal. Plus, it's designed to be easy-to-view, easy-to-understand and easy-to-operate. Simple and logical installer menu set-up, programming and operation are enhanced by audio prompting that confirms touchscreen entries. Features like variable touchscreen security to prevent tampering, temporary and vacation overrides, and filter change reminders add convenience. Our +/- 1 Deg temperature accuracy will keep your customers comfortable and protect their HVAC systems. 90 Series Blue is the result of smart, innovative thinking. Install 90 Series Blue with confidence because it's exclusively for the professional trade

Digital Thermostat, Single Stage, Universal, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 45 to 99 Deg F, Terminal Designation: RH, RC, L, C, Y, B, O, W, G, Touchscreen Display, Key Pad Lockout, Temperature Limiting, Batteries Included, Battery or Hardwired Power Source, 20 to 30VAC Volt, Horizontal Box Mount, White, 4.6 inch Height, 5.9 inch Width, 1.2 inch Depth, Includes: (2) AA Alkaline Batteries, Standards: NEC Class II, Differential Temperature: 0.6 to 1.2 Deg F, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Heat-Off-Cool-Auto System Switching, Temp. Settings per Day: 4, 2

  • Type: Single Stage, Universal
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Temperature Setting: 45 to 99 Deg F
  • Terminal Designation: RH, RC, L, C, Y, B, O, W, G
  • Display: Touchscreen
  • Key Pad Lockout: Yes
  • Temperature Limiting: Yes
  • Batteries Included: Yes
  • Power Source: Battery or Hardwired
  • Voltage Rating: 20 to 30VAC
  • Mounting: Horizontal Box
  • Color: White
  • Height: 4.6 inch
  • Width: 5.9 inch
  • Depth: 1.2 inch
  • Fan Switching: Auto-On
  • Differential Temperature: 0.6 to 1.2 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Heat-Off-Cool-Auto
  • Frequency Rating: 50 to 60 Hz
  • Temp. Settings per Day: 4, 2
  • Display Size: 12 sq in
  • Operating Ambient temperature: 32 to 105 Deg F
  • Includes: (2) AA Alkaline Batteries
  • Standards: NEC Class II
