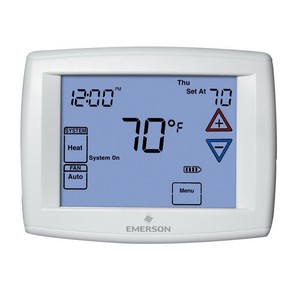

White-Rodgers™ Touchscreen Multi Stage Universal Programmable 2 Heat/2 Cool, 3 Heat/2 Cool Heat Pump Digital Thermostat, White

White-Rodgers™ Touchscreen Multi Stage Universal Programmable 2 Heat/2 Cool, 3 Heat/2 Cool Heat Pump Digital Thermostat, White



Emerson Climate Technologies 1F95-1277

  • Mfg.Part # : 1F95-1277
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F951277
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Blue 12 inch touchscreen universal and single stage models offers the ultimate in comfort, convenience, performance and visibility


  • Universal models quickly configure for single stage, multi-stage, heat pump and
  • heat pump dual fuel systems - programmable or non-programmable.
  • Humidity control offers humidification/dehumidification.
  • Commercial offers occupied damper or economizer control.
  • Staging control for nearly all conventional and heat pump systems.
  • Single stage model compatible with all single stage systems low voltage, 750 mV,
  • 3-wire zone systems and 2H/1C heat pump systems.
  • Heat Pump dual fuel option eliminates the need for a fossil fuel kit.
  • Automatic changeover option.
  • Program fan options.
  • Keypad lockout and setpoint temperature limit options.
  • Indoor remote sensor for averaging option.
  • Outdoor remote sensor option.Add to Universal models for outdoor temp reading or,
  • on select models, dual fuel balance point and outdoor thermostat functions

Digital Thermostat, Universal, Programmable, Multi Stage, 2, 3 Heat Stages, 2 Cool Stages, Temperature Setting: 45 to 99 Deg F, Terminal Designation: P RC, RH, C, W/E, W2, Y, Y2, G, O, B, 6, L, +, S, -, Touchscreen Display, Key Pad Lockout, Programmable Fan, Remote Sensing Capability, Temperature Limiting, Batteries Included, Battery or Hardwired Power Source, 20 to 30VAC Volt, Horizontal Box Mount, White, 4.6 inch Height, 5.9 inch Width, 1.2 inch Depth, Includes: (2) AA Alkaline Batteries, Standards: NEC Class II, For Use With: 3-Wire Zoned Hydronic Systems, Differential Temperature: 0.6 to 1.2 Deg F, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Cool-Off-Heat-Emergency-Auto System Switching, Temp. Settings per Day: 4, 2

  • Type: Universal, Programmable, Multi Stage
  • No. of Heat Stages: 2, 3
  • No. of Cool Stages: 2
  • Temperature Setting: 45 to 99 Deg F
  • Terminal Designation: P RC, RH, C, W/E, W2, Y, Y2, G, O, B, 6, L, +, S, -
  • Display: Touchscreen
  • Key Pad Lockout: Yes
  • Programmable Fan: Yes
  • Humidification Control: No
  • Remote Sensing Capability: Yes
  • Temperature Limiting: Yes
  • Batteries Included: Yes
  • Power Source: Battery or Hardwired
  • Voltage Rating: 20 to 30VAC
  • Mounting: Horizontal Box
  • Color: White
  • Height: 4.6 inch
  • Width: 5.9 inch
  • Depth: 1.2 inch
  • Fan Switching: Auto-On
  • For Use With: 3-Wire Zoned Hydronic Systems
  • Differential Temperature: 0.6 to 1.2 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Cool-Off-Heat-Emergency-Auto
  • Frequency Rating: 50 to 60 Hz
  • Temp. Settings per Day: 4, 2
  • Display Size: 12 sq in
  • Operating Ambient temperature: 32 to 105 Deg F
  • Includes: (2) AA Alkaline Batteries
  • Standards: NEC Class II
