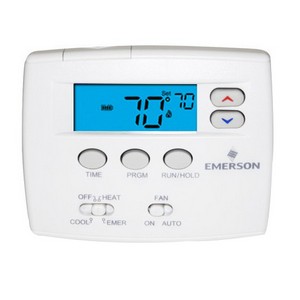

White-Rodgers™ 1 Heat/1 Cool Non-Programmable Thermostat, White

White-Rodgers™ 1 Heat/1 Cool Non-Programmable Thermostat, White



Emerson Climate Technologies 1F86-0244

  • Mfg.Part # : 1F86-0244
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F860244
  • UPC # : 786710539046
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Easy push-connect color-coded terminals
  • Easy-to-read LCD with improved contrast
  • Lighted display for easier low-light viewing
  • Comfort & Convenience
  • Permanent program retention during power loss
  • Setpoint Hold
  • Simple setup menu to activate optional features
  • Temporary temperature override two-hour minimum or until next program period
  • Soft-touch keypad
  • Display temperature recalibration (+/- 4 Deg)
  • Easy access battery compartment Dual-Powered choice of battery-powered or hardwired, for all applications
  • Fast (FA) or slow (SL) heating cycle anticipation
  • Easy-to-wire push-connect color coded terminals
  • Compressor lockout protection
  • Millivolt compatible

Thermostat, Non-Programmable, 1 Heat Stages, 1 Cool Stages, Temperature Setting: 45 to 90 Deg F, Terminal Designation: R, C, Y, W, G, O/B, LCD Blue™ Display Display, , Filter Indicator, Low Battery Indicator, Batteries Included, Hardwired/Battery Power Source, 20 to 30VAC Volt, Horizontal Box Mount, White, 3.8 inch Height, 4.8 inch Width, 1-1/2 inch Depth, Includes: (2) AA Alkaline Batteries, For Use With: Single Stage Systems, Single-Stage Heat Pump Systems, Differential Temperature: 0.6 to 1.7 Deg F, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Cool-Off- Heat System Switching

  • Type: Non-Programmable
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Temperature Setting: 45 to 90 Deg F
  • Terminal Designation: R, C, Y, W, G, O/B
  • Display: LCD Blue™ Display
  • Programmable Fan: No
  • Humidification Control: No
  • Remote Sensing Capability: No
  • Filter Indicator: Yes
  • Low Battery Indicator: Yes
  • Batteries Included: Yes
  • Power Source: Hardwired/Battery
  • Voltage Rating: 20 to 30VAC
  • Mounting: Horizontal Box
  • Color: White
  • Height: 3.8 inch
  • Width: 4.8 inch
  • Depth: 1-1/2 inch
  • Fan Switching: Auto-On
  • For Use With: Single Stage Systems, Single-Stage Heat Pump Systems
  • Differential Temperature: 0.6 to 1.7 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Cool-Off- Heat
  • Frequency Rating: 50 to 60 Hz
  • Display Size: 2 sq in
  • Operating Ambient temperature: 32 to 105 Deg F
  • Includes: (2) AA Alkaline Batteries
