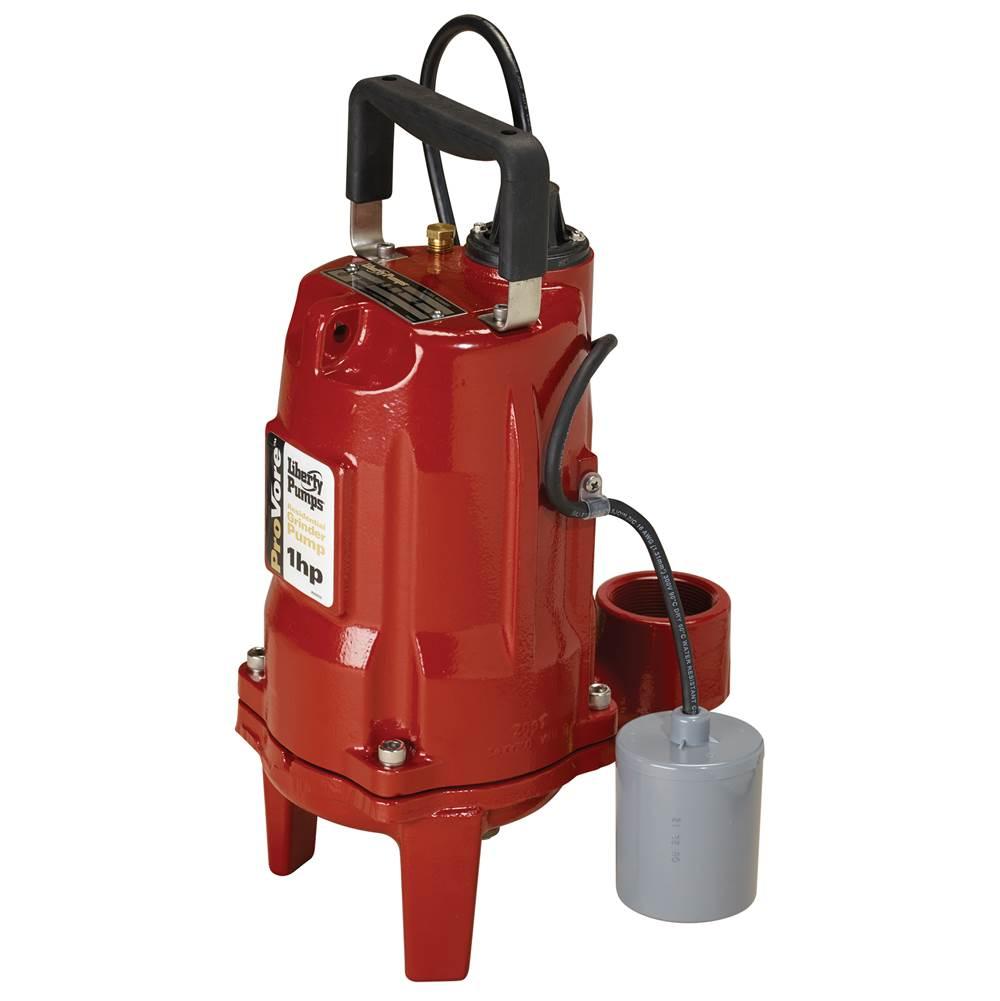

Liberty PRG101A-2 1-Phase 60 Hz Cast-Iron Automatic Grinder Pump With 2 inch Discharge 25 ft. Cord, 1 HP, 3450 rpm, 115V, 12A

Liberty PRG101A-2 1-Phase 60 Hz Cast-Iron Automatic Grinder Pump With 2 inch Discharge 25 ft. Cord, 1 HP, 3450 rpm, 115V, 12A



Liberty Pumps PRG101A-2

  • Mfg.Part # : PRG101A-2
  • Mfg.Name : Liberty Pumps
  • Part # : LIBPRG101A2
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • 3 yr. limited warranty

Grinder Pump, Automatic, PRG100 Series, Ampere Rating: 12A, 115V Voltage Rating, HP Rating: 1 HP, 1-Phase Phase, 3450 RPM, Frequency Rating: 60 Hz, Cast Iron Base, Bearing Type: Ball, 25 ft Cord Length, GPM of Water @ 10 Ft. of Head: 42 gpm, GPM of Water @ 15 Ft. of Head: 39 gpm, GPM of Water @ 20 Ft. of Head: 36 gpm, GPM Of Water @ 25 ft. Of Head: 32 gpm, GPM Of Water @ 30 ft. Of Head: 27 gpm, GPM of Water @ 40 Ft. of Head: 15 gpm, GPM of Water @ 5 Ft. of Head: 44 gpm, 17-3/4 inch Height, Cast Iron Housing, Stainless Steel Impeller, 2 inch NPT Discharge Size, Maximum Head: 50 ft, Temperature Rating: 140 Deg F, CSCR Motor, Stainless Steel Shaft, SIC Shaft Seal, Wide Angle Switch, Yes Thermal Protection, Standards: UL Listed, CSA Certified

  • Type: Automatic, PRG100 Series
  • Ampere Rating: 12A
  • Voltage Rating: 115V
  • Horse Power: 1 HP
  • Phase: 1
  • RPM: 3450
  • Frequency: 60 Hz
  • Base Material: Cast Iron
  • Bearing Type: Ball
  • Cord Length: 25 ft
  • GPM of Water at 10 Ft. of Head: 42 gpm
  • GPM of Water at 15 Ft. of Head: 39 gpm
  • GPM of Water at 20 Ft. of Head: 36 gpm
  • GPM Of Water at 25 ft. Of Head: 32 gpm
  • GPM Of Water at 30 ft. Of Head: 27 gpm
  • GPM of Water at 40 Ft. of Head: 15 gpm
  • GPM of Water at 5 Ft. of Head: 44 gpm
  • Height: 17-3/4 inch
  • Housing: Cast Iron
  • Impeller Material: Stainless Steel
  • Maximum Head: 50 ft
  • Temperature Range: 140 Deg F
  • Motor Type: CSCR
  • Shaft Material: Stainless Steel
  • Shaft Seal: SIC
  • Switch Type: Wide Angle
  • Thermal Protection: Yes
  • Standards: UL Listed, CSA Certified
