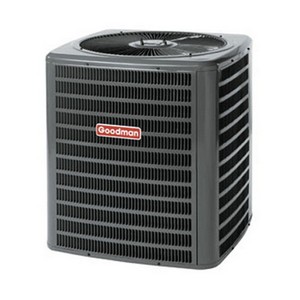

Goodman® GSC13 13-SEER R-22 Split System Dry Charged Condenser Condensing Unit, 5 Ton, 60000 Btu/h

Goodman® GSC13 13-SEER R-22 Split System Dry Charged Condenser Condensing Unit, 5 Ton, 60000 Btu/h

Goodman Manufacturing GSC130603

Your Part # :
Mfg.Part # : GSC130603
Mfg.Name : Goodman Manufacturing
Part # : GDMGSC130603

Est Delivery Time: By

Price:

Add To Cart >

Note: Branch Customer? Please login to your account to see local branch availability

Free Returns (for 60 days)
Free Shipping on orders over $49

Features
Description
Specifications

Goodman brand heating and air conditioning system is designed, engineered, and manufactured with pride. Goodman brand GSC13 Energy-Efficienct Air Conditioner will provide you with reliable cooling at money-saving energy efficiency levels as compared to lower SEER units. features a R-22 piston kit, brass liquid and suction service valves with sweat connections, louver design sound control top, Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval, when properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

When properly anchored, meets the 2010 florida building code unit integrity requirements for hurricane-type winds (anchor bracket kits available)
Steel louver coil guard
R-22 piston kit included
Quiet condenser fan system
Louver design sound control top
Heavy-gauge galvanized-steel cabinet
Ground lug connection
For use with R-22 refrigerant, charged with inert gas for shipping
Factory-installed liquid-line filter drier
Energy-efficient compressor
Copper tube/aluminum fin coil
Contactor with lug connections
Brass liquid and suction service valves with sweat connections
Attractive architectural gray powder-paint finish with 500-hour salt-spray approval

Condensing Unit, Split System, Dry Charged, GSC13 Series, Condenser R-22 Unit, Cooling Capacity: 60000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 5 ton, Horse Power: 1/4 HP, 208/230V Volt, 60 Hz Frequency, 3-Phase Phase, Min. Circuit Amp: 28.8A, 50A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 1-1/8 inch, Sound Rating: 77 dBa, Dimensions: 29 inch W x 29 inch D x 40 inch H, Standards: AHRI Certified, ETL Listed, 174 lb Weight, 5 yr Limited Warranty on Parts Warranty

Series: GSC13
Type: Split System, Dry Charged
Unit Type: Condenser R-22
Cooling Capacity: 60000 BTUH
Voltage Rating: 208/230V
Voltage Rating: 197-253V
EER: 11
SEER: 13
Phase: 3-Phase
Frequency Rating: 60 Hz
Capacity in Ton: 5 ton
Liquid Line Size: 3/8 inch
Horse Power: 1/4 HP
Suction Line Size: 1-1/8 inch
CFM: 1600

Min. Circuit Amp: 28.8A
Max. Fuse Amp: 50A
Dimensions: 29 inch W x 29 inch D x 40 inch H
Sound Rating: 77 dBa
Weight: 174 lb
Energy Star: No
Warranty: 5 yr Limited Warranty on Parts
Full Load Amperage: 1.5A
Load Rotor Amperage: 137A
Rated Load Amperage[Compressor]: 28.1A
Valve Connection Type: Sweat
Standards: AHRI Certified, ETL Listed
