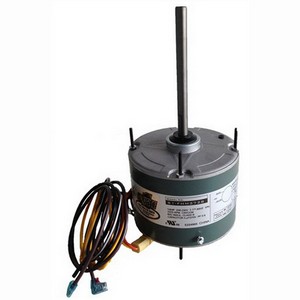

GE Direct Drive 2-Speed 1-Phase Reversible Condenser Fan Motor, 1075 rpm, 1/4 HP, 208 - 230V

GE Direct Drive 2-Speed 1-Phase Reversible Condenser Fan Motor, 1075 rpm, 1/4 HP, 208 - 230V



MARS Motors & Armatures 3728

  • Mfg.Part # : 3728
  • Mfg.Name : MARS Motors & Armatures
  • Part # : GEM3728
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Permanent split capacitor

Condenser Fan Motor, Direct Drive, No Load RPM: 1075 rpm, Horse Power: 1/4 HP, Totally Enclosed Air Over Enclosure, NEMA 48Y Frame, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, 1.8A Amp, Automatic Thermal Protection, Thru-Bolts Both the Ends Mount, Reversible Rotation, Ambient Temperature: 60 Deg C, 2 Speeds, Class B Insulation, 1/2 inch Shaft Dia., 6 inch Shaft Length, Dimensions: 5-5/8 inch Dia x 4-3/8 inch L, Includes: 26 inch Leads, 10-3/8 inch Overall Motor Length

  • Type: Direct Drive
  • Voltage Rating: 208 to 230V
  • Horse Power: 1/4 HP
  • Phase: 1-Phase
  • No Load RPM: 1075 rpm
  • Frame: NEMA 48Y
  • Enclosure: Totally Enclosed Air Over
  • No. of Speeds: 2
  • Hertz: 60 Hz
  • Overall Motor Length: 10-3/8 inch
  • Amperage Rating: 1.8A
  • Thermal Protection: Automatic
  • Mounting: Thru-Bolts Both the Ends
  • Rotation: Reversible
  • Bearing Type: Sleeve
  • Ambient Temperature: 60 Deg C
  • Insulation Class: Class B
  • Shaft Diameter: 1/2 inch
  • Shaft Length: 6 inch
  • Dimensions: 5-5/8 inch Dia x 4-3/8 inch L
  • Overall Length: 10-3/8 inch
  • Includes: 26 inch Leads
  • Applications: Condenser
