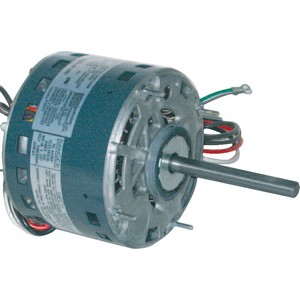

GE Direct Drive 3-Speed 1-Phase Reversible Blower Motor, 1075 rpm, 1/6 - 1/3 HP, 208 - 230V

GE Direct Drive 3-Speed 1-Phase Reversible Blower Motor, 1075 rpm, 1/6 - 1/3 HP, 208 - 230V



MARS Motors & Armatures 3586

  • Mfg.Part # : 3586
  • Mfg.Name : MARS Motors & Armatures
  • Part # : GEM3586
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

These GE 5KCP39 PSC motors are designed for use as direct drive furnace blower motors. All are three speed, high efficiency, Energy saver® models and are electrically reversible. Motors have 21/4 inch resilient rings for base mounting. Four (4) split rings included if 21/2 inch diameter is required.


  • Permanent split capacitor
  • Overload protection
  • Open construction
  • Fan duty, continuous, airover
  • All angle sleeve bearings
  • 2-1/4 inch resilient rings plus 4 split rings
  • 1/2 inch extended thru bolts

Blower Motor, Direct Drive, No Load RPM: 1075 rpm, Horse Power: 1/6 to 1/3 HP, Continuous Air Over Enclosure, NEMA 48Y Frame, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, 2.9A Amp, Automatic Thermal Protection, Thru-Bolts Mount, Reversible Rotation, Ambient Temperature: 40 Deg C, 3 Speeds, Class B Insulation, 1/2 inch Shaft Dia., 4 inch Shaft Length, Dimensions: 5-1/2 inch Dia x 5.14 inch L, Includes: 26 inch Leads

  • Type: Direct Drive
  • Voltage Rating: 208 to 230V
  • Horse Power: 1/6 to 1/3 HP
  • Phase: 1-Phase
  • Frame: NEMA 48Y
  • No Load RPM: 1075 rpm
  • Enclosure: Continuous Air Over
  • No. of Speeds: 3
  • Hertz: 60 Hz
  • Amperage Rating: 2.9A
  • Thermal Protection: Automatic
  • Mounting: Thru-Bolts
  • Rotation: Reversible
  • Bearing Type: Sleeve
  • Ambient Temperature: 40 Deg C
  • Insulation Class: Class B
  • Shaft Diameter: 1/2 inch
  • Shaft Length: 4 inch
  • Dimensions: 5-1/2 inch Dia x 5.14 inch L
  • Capacitor: 5 MFD/370V
  • No. Of Poles: 6
  • Includes: 26 inch Leads
  • Applications: Blower
