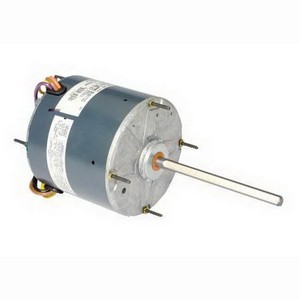

GE/Genteq 1 Speed 1-Phase Reversible Condenser Fan Motor, 1075 rpm, 1/6 - 1/3 HP, 208 - 230V

GE/Genteq 1 Speed 1-Phase Reversible Condenser Fan Motor, 1075 rpm, 1/6 - 1/3 HP, 208 - 230V



MARS Motors & Armatures 3458

  • Mfg.Part # : 3458
  • Mfg.Name : MARS Motors & Armatures
  • Part # : GEM3458
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Permanent split capacitor

Condenser Fan Motor, No Load RPM: 1075 rpm, Horse Power: 1/6 to 1/3 HP, Totally Enclosed Air Over Enclosure, NEMA 48 Frame, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, 2.7A Amp, Automatic Thermal Protection, Thru-Bolts or Belly Band Mount, Reversible Rotation, 1 Speeds, Class B Insulation, 1/2 inch Shaft Dia., 6-3/4 inch Shaft Length, Dimensions: 5-5/8 inch Dia, Standards: UR/CSA Certified

  • Voltage Rating: 208 to 230V
  • Horse Power: 1/6 to 1/3 HP
  • Phase: 1-Phase
  • Frame: NEMA 48
  • No Load RPM: 1075 rpm
  • Enclosure: Totally Enclosed Air Over
  • No. of Speeds: 1
  • Hertz: 60 Hz
  • Amperage Rating: 2.7A
  • Thermal Protection: Automatic
  • Mounting: Thru-Bolts or Belly Band
  • Rotation: Reversible
  • Bearing Type: Ball
  • Insulation Class: Class B
  • Shaft Diameter: 1/2 inch
  • Shaft Length: 6-3/4 inch
  • Dimensions: 5-5/8 inch Dia
  • Standards: UR/CSA Certified
