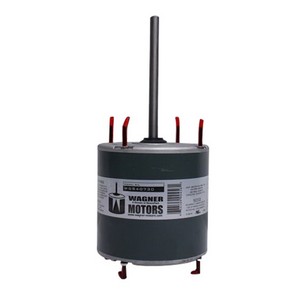

Diversitech 1 Speed Reversible Condenser Fan Motor, 1075 rpm, 1/2 HP, 208 - 230V

Diversitech 1 Speed Reversible Condenser Fan Motor, 1075 rpm, 1/2 HP, 208 - 230V



DiversiTech Corporation WG840730

  • Mfg.Part # : WG840730
  • Mfg.Name : DiversiTech Corporation
  • Part # : DIVWG840730
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Permanent split capacitor

Condenser Fan Motor, No Load RPM: 1075 rpm, Horse Power: 1/2 HP, NEMA 48 Frame, 208 to 230V Volt, 60 Hz Hertz, 4.2A Amp, Shaft Up, Shaft Down or Belly Band Mount, Reversible Rotation, Ambient Temperature: 60 Deg C, 1 Speeds, Class B Insulation, 1/2 inch Shaft Dia., Dimensions: 5.59 inch Dia x 10.584 inch L, Includes: 30 inch Leads

  • Voltage Rating: 208 to 230V
  • Horse Power: 1/2 HP
  • Frame: NEMA 48
  • No Load RPM: 1075 rpm
  • No. of Speeds: 1
  • Hertz: 60 Hz
  • Amperage Rating: 4.2A
  • Run Capacitor: 5 uF at 370 VAC
  • Mounting: Shaft Up, Shaft Down or Belly Band
  • Rotation: Reversible
  • Bearing Type: Sleeve
  • Ambient Temperature: 60 Deg C
  • Insulation Class: Class B
  • Shaft Diameter: 1/2 inch
  • Dimensions: 5.59 inch Dia x 10.584 inch L
  • Finish: Grey-green Powdercoat
  • Includes: 30 inch Leads
