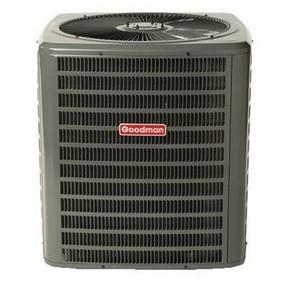

Goodman® GSC10 10-SEER R-22 Split System Jumbo Condenser Condensing Unit, 10 Ton, 120000 Btu/h

Goodman® GSC10 10-SEER R-22 Split System Jumbo Condenser Condensing Unit, 10 Ton, 120000 Btu/h

Goodman Manufacturing GSC101203

Your Part # :
Mfg.Part # : GSC101203
Mfg.Name : Goodman Manufacturing
Part # : GDMGSC101203

Est Delivery Time: By

Price:

Add To Cart >

Note: Branch Customer? Please login to your account to see local branch availability

Free Returns (for 60 days)
Free Shipping on orders over $49

Features
Description
Specifications

Goodman brand GSC10 Air Conditioner offers economical and dependable cooling comfort and energy-effi cient performance. The GSC10 has been designed with application fl exibility, convenient service, maintenance, and installation in mind. Valuedriven engineering, money-saving performance, reliable components, and quality manufacturing make GSC10 units perfect for the value-minded homeowner or cost-conscious builder

When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available)
Steel louver coil guard protects the coil from damage and adds strength to unit
Quiet operating top discharge
High-efficiency copper tube/aluminum fin coil
Heavy-gauge galvanized-steel cabinet
Ground lug connection
Goodman® brand sound control top design
Factory-installed filter drier
Energy-efficient compressor
Contactor with lug connections
Brass liquid and suction service valves
Bottom pan rails elevate unit above slab
Attractive architectural gray powder-paint finish with 500-hour salt-spray approval

Condensing Unit, Split System, Jumbo, GSC10 Series, Condenser R-22 Unit, Cooling Capacity: 120000 BTUH, 10 SEER, 11.2 EER, Capacity in Ton: 10 ton, Horse Power: 1 HP, 208/230V Volt, 60 Hz Frequency, 3-Phase Phase, Min. Circuit Amp: 43.2A, 70A Max. Fuse, Liquid Line Size: 5/8 inch, Suction Line Size: 1-5/8 inch, Sound Rating: 84 dBa, Dimensions: 35-1/2 inch W x 35-1/2 inch D x 41-1/2 H, Standards: ASHRAE Standard 90.1, ETL Listed, 334 lb Weight, 5 yr Limited Warranty on Parts Warranty

Series: GSC10
Type: Split System, Jumbo
Unit Type: Condenser R-22
Cooling Capacity: 120000 BTUH
Voltage Rating: 208/230V
Voltage Rating: 197-253V
EER: 11.2
SEER: 10
Phase: 3-Phase
Frequency Rating: 60 Hz
Capacity in Ton: 10 ton
Liquid Line Size: 5/8 inch
Horse Power: 1 HP
Suction Line Size: 1-5/8 inch
Min. Circuit Amp: 43.2A
Max. Fuse Amp: 70A

Dimensions: 35-1/2 inch W x 35-1/2 inch D x 41-1/2 H
Sound Rating: 84 dBa
Weight: 334 lb
Energy Star: No
Compressor Type: Scroll
Warranty: 5 yr Limited Warranty on Parts
Full Load Amperage: 5.6A
Load Rotor Amperage: 225A
Rated Load Amperage[Compressor]: 30.1A
Refrigerant Charge: 35 oz
Valve Connection Type: Sweat
Standards: ASHRAE Standard 90.1, ETL Listed
