- Totally enclosed, permanently lubricated condenser fan motor
- One footprint, two heights
- Louvered condenser coil protection
- Fully insulated blower compartment with convenient access panels
- Fully charged R-410A system
- Energy-efficient compressor with internal relief valve
- Electric heat kit available as a field-installed accessory
- EEM blower motor, PSC blower motor on 3-ton units
- Copper tube/aluminum fin condenser coil
- Convertible airflow: horizontal or downflow
- All-aluminum evaporator coil

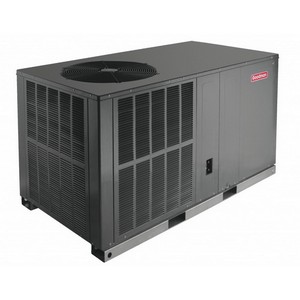

Packaged Air Conditioner, Cooling Capacity: 56000 BTUH, 13 SEER, 10.9 EER, Capacity in Ton: 5 ton, Horse Power: 1/4 HP, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 42A, 60A Max. Fuse, Dimensions: 42-3/4 inch H x 51 inch D x 47 inch W, Standards: ETL Listed, AHRI Certified, 458 lb Weight, 10 yr Warranty, R-410A Refrigerant
-
Cooling Capacity: 56000 BTUH
-
EER: 10.9
-
SEER: 13
-
Horse Power: 1/4 HP
-
Capacity in Ton: 5 ton
-
Voltage Rating: 208 to 230V
-
Phase: 1-Phase
-
Refrigerant Type: R-410A
-
Dimensions: 42-3/4 inch H x 51 inch D x 47 inch W
-
Hertz: 60 Hz
-
Min. Circuit Amp: 42A
-
Max. Fuse Amp: 60A
-
Weight: 458 lb
-
Warranty: 10 yr
-
Standards: ETL Listed, AHRI Certified
