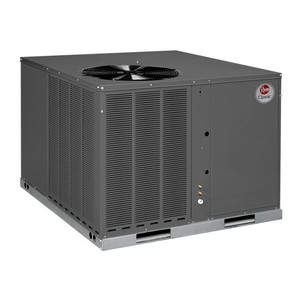

Rheem® Classic® Commercial 14-SEER R-410A Package Heat Pump, 3 Ton, 36000 Btuh Cooling/33200 Btuh Heating

Rheem® Classic® Commercial 14-SEER R-410A Package Heat Pump, 3 Ton, 36000 Btuh Cooling/33200 Btuh Heating



Rheem Sales Company RQPLB036JK000

  • Mfg.Part # : RQPLB036JK000
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRQPLB036JK000
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • All models feature Scroll® compressors for maximum efficiency and quiet operation. This unit contains a special scroll compressor that is designed specifically to operate with R-410A Refrigerants and polyolester (POE) oils. The compressor is hermetically sealed and incorporates internal high temperature motor overload protection and durable insulation on the motor windings. It is externally mounted on rubber grommets to reduce vibration and noise
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
  • One-piece top with a deep flange to help keep water out of the unit
  • Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork
  • Access panels have “weep holes” and channels to further help manage water run-off
  • Side and down discharge options available on all models
  • Easily accessible blower section complete with slideout blower
  • Refrigerant connections are conveniently located for easy service diagnostics. Low pressure/loss of charge protection is standard on all models
  • Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency
  • Supplemental electric heat strips up to 15 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring makes installation even easier
  • All units feature an internal trap on the condensate line eliminating the need for installing an on-site external trap
  • Easily accessible control box. Package heat pump utilizes demand defrost control which monitors the outdoor ambient temperature, outdoor coil temperature, and compressor run-time to determine when a defrost cycle is required
  • Rugged Baserail for improved installation and handling
  • Reversing valve directs flow of refrigerant and reverses the refrigerant flow when heating is required

Package Heat Pump, Commercial, Classic® Series, Cooling Capacity: 36000 BTUH, 14 SEER, 12 EER, Capacity in Ton: 3 ton, Horse Power: 1/5 HP, 208 to 230V Volt, 60 Hz Hertz, 3-Phase Phase, Min. Circuit Amp: 27A, 40A Max. Fuse, Sound Rating: 76 dBa, Dimensions: 41 inch H x 47-19/32 inch D x 50-13/16 inch W, Energy Star, Standards: UL Listred, AHRI Certified, TX Valve, 468 lb Weight, 10 yr Warranty, Heating Capacity: 33200 BTUH, R-410A Refrigerant, 1 Compressor, Scroll Compressor, 1075 rpm Motor Speed, Direct Drive Package

  • Series: Classic®
  • Type: Commercial
  • Cooling Capacity: 36000 BTUH
  • EER: 12
  • SEER: 14
  • Horse Power: 1/5 HP
  • Voltage Rating: 208 to 230V
  • Sound Rating: 76 dBa
  • Capacity in Ton: 3 ton
  • Phase: 3-Phase
  • Refrigerant Type: R-410A
  • Dimensions: 41 inch H x 47-19/32 inch D x 50-13/16 inch W
  • Hertz: 60 Hz
  • Min. Circuit Amp: 27A
  • Valve Type: TX
  • Max. Fuse Amp: 40A
  • Energy Star: Yes
  • Weight: 468 lb
  • Warranty: 10 yr
  • Heating Capacity: 33200 BTUH
  • No. Of Compressor: 1
  • Compressor Type: Scroll
  • Motor Speed: 1075 rpm
  • Drive Package: Direct Drive
  • Standards: UL Listred, AHRI Certified
