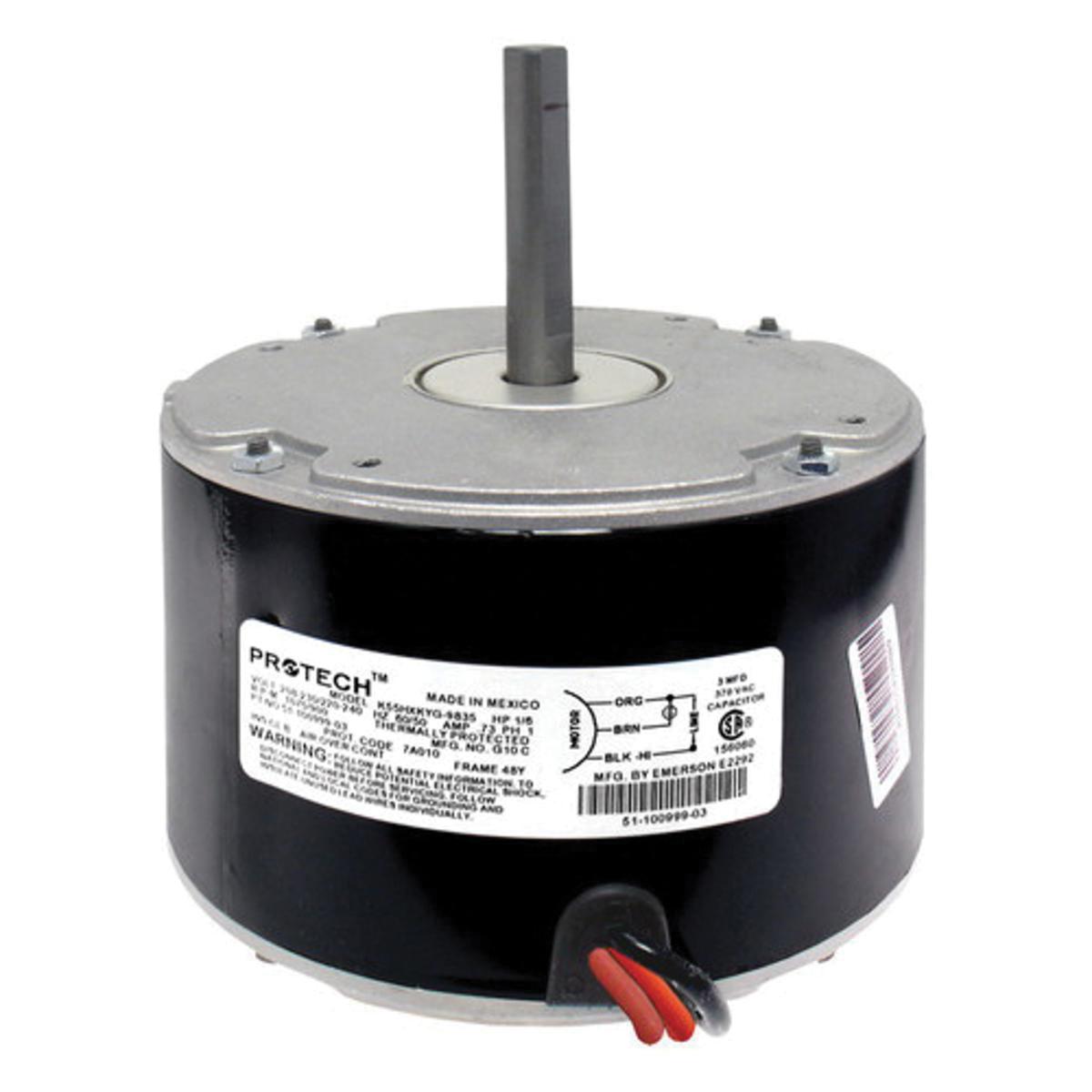

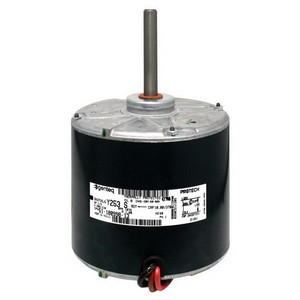

Emerson Direct Drive 1 Speed 1-Phase Counterclockwise Condenser Motor, 1075 rpm, 1/6 HP, 208 - 230V

Emerson Direct Drive 1 Speed 1-Phase Counterclockwise Condenser Motor, 1075 rpm, 1/6 HP, 208 - 230V



Rheem Manufacturing 51-100999-03

  • Mfg.Part # : 51-100999-03
  • Mfg.Name : Rheem Manufacturing
  • Part # : RH5110099903
  • UPC # : 662766288131
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

These motors are OEM replacements for Rheem, Ruud, and WeatherKing models; additionally they may be suitable for aftermarket retrofit in many other applications.

Condenser Motor, Direct Drive, No Load RPM: 1075 rpm, Horse Power: 1/6 HP, 208 to 230V Volt, 50/60 Hz Hertz, 1-Phase Phase, 0.73A Amp, End-Boss, Shell-Band Mount, Counterclockwise Rotation, 1 Speeds, 1/2 inch Shaft Dia., 3-7/16 inch Shaft Length, Dimensions: 5-5/8 inch Dia x 3-13/16 inch L, 7-1/4 inch Overall Motor Length

  • Type: Direct Drive
  • Voltage Rating: 208 to 230V
  • Horse Power: 1/6 HP
  • Phase: 1-Phase
  • No Load RPM: 1075 rpm
  • No. of Speeds: 1
  • Hertz: 50/60 Hz
  • Overall Motor Length: 7-1/4 inch
  • Amperage Rating: 0.73A
  • Run Capacitor: 10 uf/370V
  • Mounting: End-Boss, Shell-Band
  • Rotation: Counterclockwise
  • Bearing Type: Ball
  • Shaft Diameter: 1/2 inch
  • Shaft Length: 3-7/16 inch
  • Dimensions: 5-5/8 inch Dia x 3-13/16 inch L
  • Overall Length: 7-1/4 inch
  • Applications: Condenser
