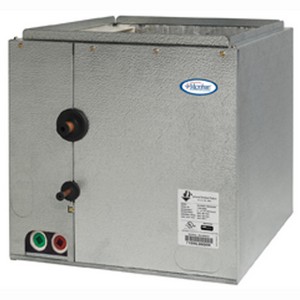

ADP® HE Premier Indoor Multipurpose Cased Evaporator Coil, 3-1/2 - 4 Ton, 1600 cfm, 21.0 inch W x 20.5 - 21.5 inch D x 25.5 inch H

ADP® HE Premier Indoor Multipurpose Cased Evaporator Coil, 3-1/2 - 4 Ton, 1600 cfm, 21.0 inch W x 20.5 - 21.5 inch D x 25.5 inch H



Advanced Distributor Products HE35948D210B2522AP

  • Mfg.Part # : HE35948D210B2522AP
  • Mfg.Name : Advanced Distributor Products
  • Part # : ADPHE35948D210B2522AP
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

ADP® HE Series coils are the perfect solution for low height applications. These coils offer perfect furnace fit, space saving opportunities, and are available in multiple heights and widths. All Healthy Solutions™ coils feature Microban® antimicrobial in the drain pan, providing added protection against mold and mildew. Coils has built-in flanges with rounded corners, front panel with only four screw removals, TXV with all threaded connections, HydroTEC™ drain pan with dual drain connections, painted cabinet color options, 1% or less air leakage


  • UV resistant drain pans are molded of high temperature (450 Deg F) engineered polymer. Microban® antimicrobial additive to inhibit the growth of mold and mildew in the drain pan. HydroTEC™ low water retention drain pan
  • Threaded expansion valves available factory installed or as a field installed kit
  • Suction line refrigerant connections are 3/4 inch ODF (A-Coil 18-36 size models) or 7/8 inch ODF (A-Coil 42-60 size models and all Horizontal Slab-Coils)
  • Suction line refrigerant connections are 1.125 inch on slab numbers E43, E46, E56, and E65 for size 42 models and higher
  • Piston options include externally accessible body for easy piston change out and/or TXV installation
  • Optional painted cabinets
  • Non-captive refrigerant lines with long stubs make for easy installation
  • Liquid line refrigerant connections are 3/8 inch ODF
  • Intertek lab tested 1% or less cabinet air leakage for better efficiency
  • Interlocking doors reduce air leakage and allow for easy access
  • High efficiency lanced fin design
  • Foam drain seal for reduced air leakage
  • Enhanced refrigerant pipe grommets: secure, tight and easy to install
  • Corrosion resistant coil header plates
  • Copper refrigerant connections for easy brazing on both copper and aluminum slab models
  • Coils are air pressure tested at 500 psi, leak tested with helium, sealed with rubber plugs, then charged with dry air
  • Cased coils have heavy gauge embossed galvanized cabinets fully lined with 5/8 inch foil faced insulation
  • Cabinet insulation hold down tabs for easy drain pan removal
  • All multi-position coils are upflow, downflow and left or right airflow capable
  • All A-coils are upflow or downflow capable

Evaporator Coil, HE Series, Premier Indoor, Multi-Purpose, Cased, 3-1/2 to 4 ton Capacity, HydroTEC™, Engineered Polymer, UV Resistant Drain Pan, Copper Tubing, Suction Line Size: 7/8 inch ODF, Liquid Line Size: 3/8 inch ODF, 1600 cfm, 21 inch Width, 20-1/2 to 21-1/2 inch Depth, 25-1/2 inch Height, Embossed, For Use With: R-22, R-410A, AC and Heat Pump, 3/4 inch Notch

  • Series: HE
  • Type: Premier Indoor, Multi-purpose, Cased
  • Capacity: 3-1/2 to 4 ton
  • For Use With: R-22, R-410A, AC and Heat Pump
  • Drain Pan: HydroTEC™, Engineered Polymer, UV Resistant
  • Tubing Material: Copper
  • Depth: 20-1/2 to 21-1/2 inch
  • Suction Line Size: 7/8 inch ODF
  • Height: 25-1/2 inch
  • Liquid Line Size: 3/8 inch ODF
  • Width: 21 inch
  • CFM: 1600 cfm
  • Color: Embossed
  • Notch: 3/4 inch
  • Cabinet Depth: 21 inch
  • Cabinet Height: 25.5 inch
  • Coil Height: 21 inch
  • Metering Device: Non-bleed HP-A/C TXV (R-410A)
  • Nominal MBTUH: 48
  • Face Velocity: 360 fpm
  • Product Code: 22 (Left-Hand Cased Multi-Position)
  • Pan Depth: 19.5 inch
  • Piston Size: AP (TXV Access Port [2])
  • Slab Number: E35
