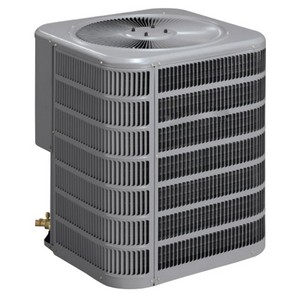

Armstrong 4AC14L 14-SEER Split System Heavy-Duty Louvered Single-Stage Condensing Unit, 2.5 Ton, 30000 Btu/h

Armstrong 4AC14L 14-SEER Split System Heavy-Duty Louvered Single-Stage Condensing Unit, 2.5 Ton, 30000 Btu/h



Allied Air Enterprises 4AC14L30P

  • Mfg.Part # : 4AC14L30P
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4AC14L30P
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

4AC14L air conditioner has an energy rating of 14 SEER, SEER stands for Seasonal Energy Eiciency Ratio, and is a measure of cooling eiciency and performance. The higher the eiciency rating, the more eiciently the unit operates and the greater your energy savings which means it can signiicantly lower your utility bills, compared to an older model. It works eiciently to deliver exceptional cooling comfort day in and day out, year after year. Compressor motor designed for quiet, reliable and eicient operation. Corrosion-resistant cabinet made with strong, heavy-gauge pre-painted steel is built to last. Tested for leaks and proper operation at the factory to ensure faultless performance. Precision-balanced, direct-drive fan sends hot air and noise up and away from your home, condenser coil and fan system designed with copper tubes and louvered ins for maximum heat transfer capability


  • Top discharge directs hot air and sound away from living area and shrubbery
  • Short cycle protection factory installed
  • Rigorous run-testing of each unit in our factory helps ensure the most reliable performance in your home
  • Reliable, solid state defrost control
  • R410A refrigerant
  • Permanently lubricated condenser fan motor needs no annual maintenance
  • Low pressure switch factory installed for loss of charge protection
  • Louvered panel coil protection
  • Integrated control with LED diagnostics
  • High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
  • Energy Star® qualification means you could be eligible for state or local tax credits
  • Easy access to electrical panels, pre-wired for easy hook-up
  • Discharge muffler for quiet operation
  • Defrost control is Quiet Shift™ capable
  • Charged for 15 ft of interconnecting tubing
  • Bi-directional liquid line filter drier factory installed
  • All units run tested

Condensing Unit, Split System, Heavy-Duty, 4AC14L Series, Louvered, Single-Stage Unit, Cooling Capacity: 30000 BTUH, 14 SEER, 11 EER, Capacity in Ton: 2.5 tons, Horse Power: 1/6 HP, 208/230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 17.2A, 30A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 3/4 inch, Sound Rating: 76 dBa, Dimensions: 28.25 inch W x 28.25 inch D x 36.5 inch H, Energy Star, Standards: AHRI Certified, ETL Listed, 172 lb Weight, 10 yr Limited Warranty on Compressor,10 yr Limited Warranty on all Parts Warranty

  • Series: 4AC14L
  • Type: Split System, Heavy-Duty
  • Unit Type: Louvered, Single-Stage
  • Cooling Capacity: 30000 BTUH
  • Voltage Rating: 208/230V
  • Voltage Rating: 197-253V
  • EER: 11
  • SEER: 14
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Capacity in Ton: 2.5 tons
  • Liquid Line Size: 3/8 inch
  • Horse Power: 1/6 HP
  • Suction Line Size: 3/4 inch
  • CFM: 1000
  • Min. Circuit Amp: 17.2A
  • Max. Fuse Amp: 30A
  • Dimensions: 28.25 inch W x 28.25 inch D x 36.5 inch H
  • Sound Rating: 76 dBa
  • Weight: 172 lb
  • Energy Star: Yes
  • Warranty: 10 yr Limited Warranty on Compressor,10 yr Limited Warranty on all Parts
  • Locked Rotor Amperage: 64A
  • Nominal RPM[Fan Motor]: 825
  • Rated Load Amperage[Compressor]: 12.9A
  • Rated Load Amperage[Fan Motor]: 1.1A
  • Refrigerator Charge: 107 oz
  • Standards: AHRI Certified, ETL Listed
