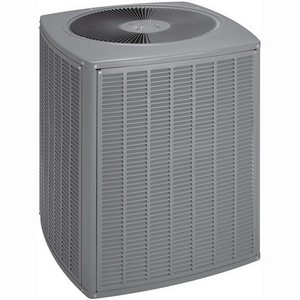

Allied Air® 1 Series 13-SEER R22 Dry Charged Split SystemHeat Pump, 4 Ton, 48000 BtuH

Allied Air® 1 Series 13-SEER R22 Dry Charged Split SystemHeat Pump, 4 Ton, 48000 BtuH



Allied Air Enterprises 2SHP13LC148T

  • Mfg.Part # : 2SHP13LC148T
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR2SHP13LC148T
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Trade-available components
  • Service valves positioned for quick installation and easy service
  • Rounded corners for safety and attractive, clean appearance
  • Reliable, solid-state, time-initiated, temperature-terminated defrost system
  • Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Nitrogen charged for replacement of R22 components only
  • Internally protected against high temperature motor overload conditions
  • High-efficiency scroll compressor
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panels remove with just two screws per panel for easy coil cleaning and service
  • Full metal louvered panel coil guard protection
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for high efficiency and capacity
  • Discharge muffler for quiet operation
  • Defrost control has short cycle protection to protect compressor
  • Controls located in corner post for easy installation and service
  • Bi-directional filter drier for long-lasting durability and system protection

Heat Pump, Dry Charged, 1 Series, Split System Unit, Cooling Capacity: 48000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 4 ton, Horse Power: 1/4 HP, 208 to 230V Volt, 60 Hz Hertz, 3-Phase Phase, Min. Circuit Amp: 20.8A, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 78 dBa, Dimensions: 37-3/4 inch H x 29-3/8 inch D x 31-1/4 inch W, Standards: UL Listed, AHRI Cirtified, 248 lb Weight, 1 yr Warranty

  • Series: 1
  • Type: Dry Charged
  • Unit Type: Split System
  • Cooling Capacity: 48000 BTUH
  • SEER: 13
  • Voltage Rating: 208 to 230V
  • EER: 11
  • Capacity in Ton: 4 ton
  • Phase: 3-Phase
  • Horse Power: 1/4 HP
  • Hertz: 60 Hz
  • Min. Circuit Amp: 20.8A
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Sound Rating: 78 dBa
  • Dimensions: 37-3/4 inch H x 29-3/8 inch D x 31-1/4 inch W
  • Energy Star: No
  • Weight: 248 lb
  • Warranty: 1 yr
  • Refrigerant Type: R22
  • Nominal RPM: 825
  • Standards: UL Listed, AHRI Cirtified
