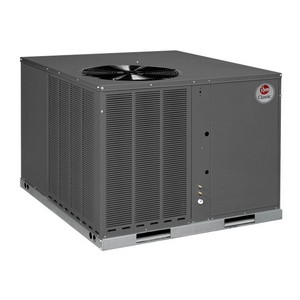

Rheem® Classic® 13-SEER R-410A No Resistance Heat Package Air Conditioners, 3 Ton, 36000 BtuH

Rheem® Classic® 13-SEER R-410A No Resistance Heat Package Air Conditioners, 3 Ton, 36000 BtuH



Rheem Sales Company RSNLB036CK000

  • Mfg.Part # : RSNLB036CK000
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRSNLB036CK000
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • All models feature Scroll® compressors for maximum efficiency and quiet operation. The 5-Ton RSPL model features Scroll UltraTech™ 2-Stage compressors with Comfort Alert™ diagnostics (see below), high/low pressure switches, and hard start kits.
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
  • One-piece top with a drip lip to help keep water off of the unit sides
  • Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork
  • Access panels have “weep holes” and channels to further help manage water run-off
  • Side and down discharge options available on all models
  • Easily accessible blower section complete with slide-out blower
  • Refrigerant connections are conveniently located for easy service diagnostics
  • Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency
  • Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency
  • Easily accessible control box

Package Air Conditioners, Classic® Series, No Resistance Heat Unit, Cooling Capacity: 36000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 3 ton, Horse Power: 1/5 HP, 208 to 230V Volt, 60 Hz Hertz, 3-Phase Phase, Min. Circuit Amp: 17A, 25A Max. Fuse, Sound Rating: 76 dBa, Dimensions: 35-15/16 inch H x 47-1/2 inch D x 52-7/16 inch W, Energy Star, Standards: UL Listred, AHRI Certified, TX Valve, 412 lb Weight, 10 yr Warranty, R-410A Refrigerant, 1 Compressor, Scroll Compressor, 1075 rpm Motor Speed, Direct Drive Package

  • Series: Classic®
  • Unit Type: No Resistance Heat
  • Cooling Capacity: 36000 BTUH
  • EER: 11
  • SEER: 13
  • Horse Power: 1/5 HP
  • Capacity in Ton: 3 ton
  • Voltage Rating: 208 to 230V
  • Sound Rating: 76 dBa
  • Phase: 3-Phase
  • Refrigerant Type: R-410A
  • Dimensions: 35-15/16 inch H x 47-1/2 inch D x 52-7/16 inch W
  • Hertz: 60 Hz
  • Min. Circuit Amp: 17A
  • Valve Type: TX
  • Max. Fuse Amp: 25A
  • Energy Star: Yes
  • Weight: 412 lb
  • Warranty: 10 yr
  • No. Of Compressor: 1
  • Compressor Type: Scroll
  • Motor Speed: 1075 rpm
  • Drive Package: Direct Drive
  • Standards: UL Listred, AHRI Certified
