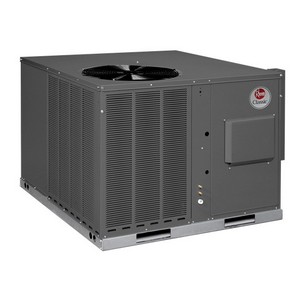

Rheem® Classic® Rooftop 13-SEER R-410A Package Gas Electric Unit, 5 Ton, 60000 Btuh Cooling/80000 Btu Heating

Rheem® Classic® Rooftop 13-SEER R-410A Package Gas Electric Unit, 5 Ton, 60000 Btuh Cooling/80000 Btu Heating



Rheem Sales Company RRNLC060JK10E

  • Mfg.Part # : RRNLC060JK10E
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRRNLC060JK10EBVA
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The 2-5 ton Rheem 13 SEER RRNL, 14 SEER RRPL, and 16 SEER RRRL Package Gas/Electric units feature earth-friendly R-410A refrigerant. The RRRL Models have added features that include: On demand dehumidification, standard stainless steel heat exchanger, two stage gas heat, and ECM motor with adjustable airflow in both heating and cooling to 1.0 inch SP static capability. This platform provides you with a full line of capacities that are each AHRI-certified. The design is certified by CSA International.


  • All models feature Scroll® compressors for maximum efficiency and quiet operation. 5 Ton RRPL and all RRRL models feature UltraTech™ Scroll 2-Stage compressors with Comfort Alert™ diagnostics (see below), high/low pressure switches, and hard start kits
  • Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes
  • One-piece top with a deep flange to help keep water out of the unit
  • Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork
  • Access panels have “weep holes” and channels to further help manage water run-off
  • Side and down discharge options available on all models. All models are shipped ready for horizontal application
  • Easily accessible blower section complete with slide-out blower. The RRRL comes standard with variable speed motor with adjustable airflow in heating and cooling. The variable speed motor also comes with a interface that allows for dehumidification when used in continuous humidistat. The variable speed system is capable of 1 inch external static
  • Refrigerant connections are conveniently located for easy service diagnostics
  • Condenser and evaporator coils feature enhanced fins for better heat transfer and rifled copper tubing for greater efficiency

Package Gas Electric Unit, Rooftop, Classic® Series, Cooling Capacity: 60000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 5 ton, Horse Power: 1/3 HP, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 43A, 60A Max. Fuse, Sound Rating: 78 dBa, Dimensions: 41 inch H x 47-1/2 inch D x 52-7/16 inch W, Energy Star, Standards: UL Listred, AHRI Certified, 532 lb Weight, Includes: Stainless Steel Heat Exchanger, 10 yr Warranty, Heating Capacity (Input/Output): 100000/80000 BTUH, R-410A Refrigerant, 1 Compressor, Scroll Compressor, 1075 rpm Motor Speed, Direct Drive Package

  • Series: Classic®
  • Type: Rooftop
  • Cooling Capacity: 60000 BTUH
  • EER: 11
  • SEER: 13
  • Horse Power: 1/3 HP
  • Voltage Rating: 208 to 230V
  • Capacity in Ton: 5 ton
  • Sound Rating: 78 dBa
  • Phase: 1-Phase
  • Refrigerant Type: R-410A
  • Dimensions: 41 inch H x 47-1/2 inch D x 52-7/16 inch W
  • Hertz: 60 Hz
  • Min. Circuit Amp: 43A
  • Max. Fuse Amp: 60A
  • Energy Star: Yes
  • Weight: 532 lb
  • Warranty: 10 yr
  • Heating Capacity: 100000/80000 BTUH
  • No. Of Compressor: 1
  • Compressor Type: Scroll
  • Motor Speed: 1075 rpm
  • Drive Package: Direct Drive
  • Includes: Stainless Steel Heat Exchanger
  • Standards: UL Listred, AHRI Certified
