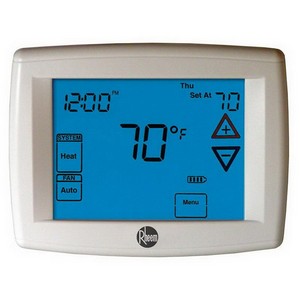

Rheem 500 High Definition 5/2 or 7 Day 2 Heat/2 Cool, 4 Heat/2 Cool Heat Pump Communicating Programmable Thermostat

Rheem 500 High Definition 5/2 or 7 Day 2 Heat/2 Cool, 4 Heat/2 Cool Heat Pump Communicating Programmable Thermostat



Rheem Sales Company RHC-TST550CMMS

  • Mfg.Part # : RHC-TST550CMMS
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHCTST550CMMS
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

500-Series Thermostat as part of the most sophisticated and easy-to-use home comfort system available today. The Rheem Comfort Control2 System™ will provide improved comfort, optimal energy efficiency, and enhanced reliability and performance. The Comfort Control2 System consists of an indoor furnace or air handler, an outdoor condensing unit or heat pump, and the 500-Series Thermostat. The 500-Series Thermostat auto-configures the system and constantly communicates with the indoor and outdoor heating and cooling components to provide the homeowner with the utmost in home comfort and peace of mind. The thermostat is so smart; it can notify the homeowner when a service call is needed to any part of the complete system. These features ensure simple, dependable operation for the homeowner and easy installation by the contractor for peak performance


  • Advanced System Diagnostics and Alerts
  • Humidity Control
  • Intuitive Programming for Easy Set-up, Control, and Diagnostics
  • Heat/Cool/Auto Change-over
  • Outdoor Temperature Display
  • Backlight On/Off
  • Intelligent Scheduling Ramp-Up/ Program Anticipation
  • Audio Notifications On/Off
  • Air Filter, UV Lights & Humidifier Maintenance Reminder
  • Temperature Offset
  • Continuous Fan (Hi, Med, Lo)

Communicating Thermostat, 7, 5/2 Programmable, 2 For Conventional System, 4 For Heat Pump Heat Stages, 2 Cool Stages, Temperature Setting: 45 to 99 Deg F, High Definition Color Display, Programmable Fan, Humidification Control, Dehumidification Control, Hardwired Power Source, 20 to 30VAC Volt, 3.304 inch Height, 6.15 inch Width, 0.67 inch Depth, Standards: Meets California Building Code, Differential Temperature: 0.6 to 1.2 Deg F, On-Auto-Prog Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Cool-Auto-Heat-Emergency Heat-Off System Switching

  • Type: 7, 5/2 Programmable
  • No. of Heat Stages: 2 For Conventional System, 4 For Heat Pump
  • No. of Cool Stages: 2
  • Temperature Setting: 45 to 99 Deg F
  • Display: High Definition Color
  • Programmable Fan: Yes
  • Humidification Control: Yes
  • Dehumidification Control: Yes
  • Power Source: Hardwired
  • Voltage Rating: 20 to 30VAC
  • Height: 3.304 inch
  • Width: 6.15 inch
  • Depth: 0.67 inch
  • Fan Switching: On-Auto-Prog
  • Differential Temperature: 0.6 to 1.2 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Cool-Auto-Heat-Emergency Heat-Off
  • Frequency Rating: 50 to 60 Hz
  • Display Size: 3.5 inch
  • Operating Ambient temperature: 32 to 105 Deg F
  • Standards: Meets California Building Code
