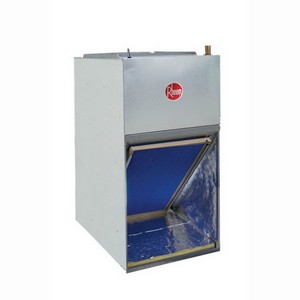

Rheem® RHBL Front Return R-410A Air Handler, 2 Ton

Rheem® RHBL Front Return R-410A Air Handler, 2 Ton



Rheem Sales Company RHBL-FR24TJN00A

  • Mfg.Part # : RHBL-FR24TJN00A
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHBLFR24TJN00A
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The Rheem RHBL Series Air Handler is designed for high performance, exceeding the standard efficiency requirements and, in many cases, enhancing the efficiency rating of your outdoor air conditioning unit. The Rheem RHBL Air Handler is certified and independently verified, delivering guaranteed comfort for your home that’s easy to afford. Rheem Air Handlers are designed to be durable and long-lasting. A unique drip pan feature protects your home from potentially damaging condensation run-off, delivering peace of mind in addition to long-lasting comfort.


  • Front or Bottom Return (Requires RXHK-B01/B02 Kit)
  • Flow Check Piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built in Filter Rack (Uses Standard Filter Sizes)
  • Suitable for R-410A or R-22 Refrigerants (RHAL Only)
  • AHRI Certified
  • UL Certified
  • Molex Plug Connections for field installed heater kits
  • Dual Voltage Direct Drive Blower with multi-speed motor
  • Thermoplastic Drain Pan with bottom primary and secondary Connections
  • Optional Decorative Grill for front return applications (RXHK-C01/C02)
  • Optional Decorative Wall Grill (RXHK-D01)
  • Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged

Air Handler, Front Return, Nominal Capacity: 2 ton, 208/240V Volt, 2.7A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 600 to 800 cfm, 17-7/6 inch Return Air Opening Depth, 20 inch Return Air Opening Width, Suction Line Size: 3/4 inch, Liquid Line Size: 3/8 inch, 21-1/2 inch Width, 36 inch Height, 17 inch Depth, Standards: UL Listed, AHRI Certified, Includes: X-13 (ECM) Motor, 300 to 1100 rpm RPM, Horse Power: 1/3 HP, R-410A Refrigerant, 2.7A Motor Amps

  • Type: Front Return
  • Nominal Capacity: 2 ton
  • Voltage Rating: 208/240V
  • Amperage Rating: 2.7A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • CFM: 600 to 800 cfm
  • Return Air Opening Depth: 17-7/6 inch
  • Return Air Opening Width: 20 inch
  • Suction Line Size: 3/4 inch
  • Liquid Line Size: 3/8 inch
  • Width: 21-1/2 inch
  • Height: 36 inch
  • Depth: 17 inch
  • Horse Power: 1/3 HP
  • RPM: 300 to 1100 rpm
  • Motor Amps: 2.7A
  • Refrigerant: R-410A
  • Warranty: 10 yr.
  • Includes: X-13 (ECM) Motor
  • Standards: UL Listed, AHRI Certified
