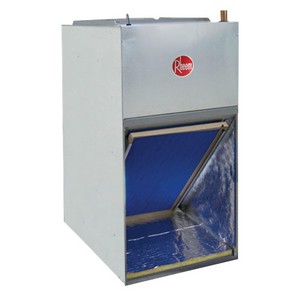

Rheem® RHAL Front Return Steel R-410A Air Handler, 2.5 Ton

Rheem® RHAL Front Return Steel R-410A Air Handler, 2.5 Ton



Rheem Sales Company RHAL-FR30PJN00A

  • Mfg.Part # : RHAL-FR30PJN00A
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRHALFR30PJN00A
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

The Rheem RHAL Series Air Handler is designed to meet the needs of a variety of systems. This air handler is suitable for R-22 applications and can be used for replacing an old unit or for new construction. Affordable and Reliable The Rheem RHAL Air Handler is certified and independently verified, delivering guaranteed comfort for your home that’s easy to afford. With the Rheem RHAL Air Handler, you have the choice between a higher or lower efficiency unit. However, both options deliver comfortable cooling while still helping to manage the household budget.


  • Front or Bottom Return (Requires RXHK-B01/B02 Kit)
  • Flow Check Piston for cooling or heat pump operation
  • Wall-hanging brackets
  • Built in Filter Rack (Uses Standard Filter Sizes)
  • Suitable for R-410A or R-22 Refrigerants (RHAL Only)
  • AHRI Certified
  • UL Certified
  • Molex Plug Connections for field installed heater kits
  • Dual Voltage Direct Drive Blower with multi-speed motor
  • Thermoplastic Drain Pan with bottom primary and secondary connections
  • Optional Decorative Grill for front return applications (RXHK-C01/C02)
  • Optional Decorative Wall Grill
  • Optional Factory Installed Condensate Float Switch which shuts off the outdoor unit in event the condensate pan becomes clogged

Air Handler, Front Return, Nominal Capacity: 2.5 ton, 208/230V Volt, 2.5A Amp, 1-Phase Phase, Frequency Rating: 60 Hz, Maximum Fuse Size: 15A, 1000 cfm, 21-3/8 inch Return Air Opening Depth, 23 inch Return Air Opening Width, Steel, 21-1/2 inch Width, 36 inch Height, 21 inch Depth, Standards: UL Listed, AHRI Certified, Includes: PSC Motor, 1075 rpm RPM, Horse Power: 1/4 HP, R-410A Refrigerant

  • Type: Front Return
  • Nominal Capacity: 2.5 ton
  • Voltage Rating: 208/230V
  • Amperage Rating: 2.5A
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Max. Fuse Size: 15A
  • CFM: 1000 cfm
  • Return Air Opening Depth: 21-3/8 inch
  • Return Air Opening Width: 23 inch
  • Material: Steel
  • Width: 21-1/2 inch
  • Height: 36 inch
  • Depth: 21 inch
  • Horse Power: 1/4 HP
  • RPM: 1075 rpm
  • Refrigerant: R-410A
  • Warranty: 10 yr.
  • Includes: PSC Motor
  • Standards: UL Listed, AHRI Certified
