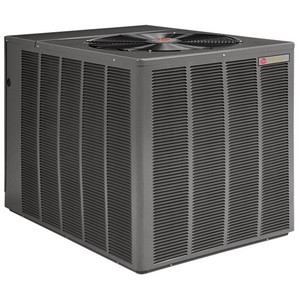

Rheem® Prestige 16-SEER Two Stage Remote Condensing Unit Air Conditioner, 2 Ton, 24000 BtuH

Rheem® Prestige 16-SEER Two Stage Remote Condensing Unit Air Conditioner, 2 Ton, 24000 BtuH



Rheem Sales Company RARL025JEC

  • Mfg.Part # : RARL025JEC
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRARL025JEC
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • The Comfort Control2 System™ provides over 32+ on-board diagnostics and fault history codes for condensing units with single-phase compressors by detecting system and electrical problems. The integrated diagnostics with Active Protection™ prevents compressor operation when potentially harmful conditions are detected. Sends “Call for Service” alert notification to the thermostat to alert the homeowner of required service.
  • Legacy Enabled - Unit can be conventionally wired using 24VAC with non-communicating Rheem Prestige air-handlers or furnaces with non-communicating thermostat.
  • Features a 10-year conditional unit replacement warranty and 10-year parts warranty when properly installed with a new Rheem air handler or Rheem indoor coil with a Rheem gas furnace. See product warranty card for additional information.
  • Reliable Two-Stage operation for precise temperature control with On-Demand dehumidification feature. When matched with ECM gas furnace or air-handler, the system adjusts airflow to help control humidity for unsurpassed comfort in the cooling mode
  • All controls are accessible by removing one service panel. Removable top grille provides access to the condenser fan motor and condenser coil
  • Attractive, louvered wrap-around jacket protects the coil from yard hazards and weather extremes. Top grille is steel reinforced for extra strength. Cabinet is powder painted for all weather protection.
  • For quiet operation and improved efficiency, all models feature highly optimized fan & motor combinations
  • All models meet or exceed a 1000-hour salt spray test per ASTM B117 Standard Practice for Operating Salt Spray Testing Apparatus

Air Conditioner, Two Stage, Prestige Series, Remote Condensing Unit Unit, Cooling Capacity: 24000 BTUH, 16 SEER, 13 EER, Capacity in Ton: 2 ton, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 16A, 25A Max. Fuse, Liquid Line Size: 5/16 inch, Suction Line Size: 3/4 inch, Sound Rating: 71 to 74 dBa, Dimensions: 23 inch H x 44-3/8 inch L x 31-1/2 inch D, Energy Star, Standards: UL Listred, AHRI Certified, 197 lb Weight, Includes: Comfort Control System™, 10 yr Warranty

  • Series: Prestige
  • Type: Two Stage
  • Unit Type: Remote Condensing Unit
  • Cooling Capacity: 24000 BTUH
  • Voltage Rating: 208 to 230V
  • EER: 13
  • SEER: 16
  • Phase: 1-Phase
  • Capacity in Ton: 2 ton
  • Liquid Line Size: 5/16 inch
  • Suction Line Size: 3/4 inch
  • Hertz: 60 Hz
  • Min. Circuit Amp: 16A
  • Max. Fuse Amp: 25A
  • Dimensions: 23 inch H x 44-3/8 inch L x 31-1/2 inch D
  • Sound Rating: 71 to 74 dBa
  • Weight: 197 lb
  • Energy Star: Yes
  • Warranty: 10 yr
  • Includes: Comfort Control System™
  • Standards: UL Listred, AHRI Certified
