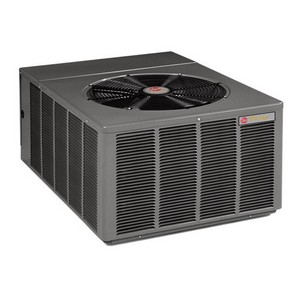

Rheem® Prestige 14-SEER R-410A Single Stage Remote Condensing Unit Air Conditioner, 2 Ton, 24000 BtuH

Rheem® Prestige 14-SEER R-410A Single Stage Remote Condensing Unit Air Conditioner, 2 Ton, 24000 BtuH



Rheem Sales Company RAPM024JEZ

  • Mfg.Part # : RAPM024JEZ
  • Mfg.Name : Rheem Sales Company
  • Part # : RHRAPM024JEZ
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • The Comfort Control System™ provides on-board diagnostics and fault history for condensing units with single-phase compressors by detecting system and electrical problems without adding sensors. It can also communicate “fault codes” to enabled “L terminal” thermostats. The integrated diagnostics with Active Protection™ prevents compressor operation when potentially harmful conditions are detected
  • 7-Segment LED Display is exclusive only to Rheem products. The information-display quickly and accurately shows technicians the source of malfunctions.
  • Features a five-year conditional unit replacement warranty when properly installed with a new Rheem Air Handler or Rheem Indoor Coil with a Rheem Gas Furnace. See product warranty card for additional information
  • Compressor sound blanket is standard to provide quiet operation.
  • Attractive, louvered wrap-around jacket protects the coil from yard hazards and weather extremes. Top grille is steel reinforced for extra strength. Cabinet is powder painted for all-weather protection
  • Air is discharged upward away from bushes and shrubs. The discharge pattern of the top grille provides minimum air restriction
  • Combination Grille/Motor Mount secures the motor to the underside of the discharge grille. The grille protects the motor windings and bearings from rain and snow
  • Removable top grille provides access to the condenser fan motor and condenser coil
  • All models meet or exceed a 1000-hour salt spray test per ASTM B117 Standard Practice for Operating Salt Spray Testing Apparatus

Air Conditioner, Single Stage, Prestige Series, Remote Condensing Unit Unit, Cooling Capacity: 24000 BTUH, 14 SEER, 11.5 EER, Capacity in Ton: 2 ton, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 18A, 30A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 3/4 inch, Sound Rating: 73 dBa, Dimensions: 29 inch H x 44-3/8 inch L x 31-1/2 inch D, Energy Star, Standards: UL Listred, AHRI Certified, Sweat Valve, 199.5 lb Weight, Includes: Comfort Control System™, 10 yr Warranty, R-410A Refrigerant

  • Series: Prestige
  • Type: Single Stage
  • Unit Type: Remote Condensing Unit
  • Cooling Capacity: 24000 BTUH
  • Voltage Rating: 208 to 230V
  • EER: 11.5
  • SEER: 14
  • Phase: 1-Phase
  • Capacity in Ton: 2 ton
  • Liquid Line Size: 3/8 inch
  • Suction Line Size: 3/4 inch
  • Hertz: 60 Hz
  • Min. Circuit Amp: 18A
  • Max. Fuse Amp: 30A
  • Dimensions: 29 inch H x 44-3/8 inch L x 31-1/2 inch D
  • Sound Rating: 73 dBa
  • Weight: 199.5 lb
  • Energy Star: Yes
  • Refrigerant Type: R-410A
  • Compressor Type: Scroll
  • Valve Type: Sweat
  • Warranty: 10 yr
  • Includes: Comfort Control System™
  • Standards: UL Listred, AHRI Certified
