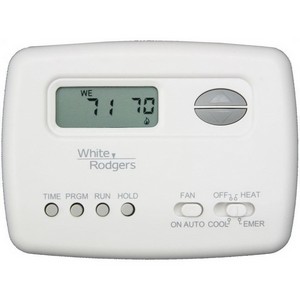

White-Rodgers™ 70 LCD 5+2 Day 2 Heat/1 Cool Programmable Digital Thermostat, White

White-Rodgers™ 70 LCD 5+2 Day 2 Heat/1 Cool Programmable Digital Thermostat, White



Emerson Climate Technologies 1F72-151

  • Mfg.Part # : 1F72-151
  • Mfg.Name : Emerson Climate Technologies
  • Part # : WR1F72151
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

With a 70 Series Heat Pump thermostat, your customers can economically upgrade to digital accuracy and energy savings. It is easy to install and is compatible with most heat pump systems. The 70 Series is perfect for customers who want an economical and easy digital upgrade for their heat pump system. Plus, White-Rodgers 70 Series versatility means less inventory for you


  • Fossil fuel or electric heat compatible.
  • Large LCD with backlight.
  • Selectable Celsius or Fahrenheit temperature display.
  • Includes B/O terminals.
  • Electronic accuracy

Digital Thermostat, 5+2 Day Programmable, 2 Heat Stages, 1 Cool Stages, Temperature Setting: 45 to 90 Deg F, Terminal Designation: W2, R, E, Y, G, L, O/B, C, LCD with Backlight Display, Low Battery Indicator, Battery or Hardwired Power Source, 20 to 30VAC Volt, Horizontal Box Mount, White, 3.7 inch Height, 5.1 inch Width, 1.1 inch Depth, Standards: NEC Class II, For Use With: Heat Pump System, Differential Temperature: 0.6 to 1.6 Deg F, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum

  • Type: 5+2 Day Programmable
  • No. of Heat Stages: 2
  • No. of Cool Stages: 1
  • Temperature Setting: 45 to 90 Deg F
  • Terminal Designation: W2, R, E, Y, G, L, O/B, C
  • Display: LCD with Backlight
  • Low Battery Indicator: Yes
  • Power Source: Battery or Hardwired
  • Voltage Rating: 20 to 30VAC
  • Mounting: Horizontal Box
  • Color: White
  • Height: 3.7 inch
  • Width: 5.1 inch
  • Depth: 1.1 inch
  • For Use With: Heat Pump System
  • Differential Temperature: 0.6 to 1.6 Deg F
  • Humidity Range: 90% Non-Condensing Maximum
  • Frequency Rating: 50 to 60 Hz
  • Display Size: 6 sq in
  • Operating Ambient temperature: 32 to 105 Deg F
  • Standards: NEC Class II
