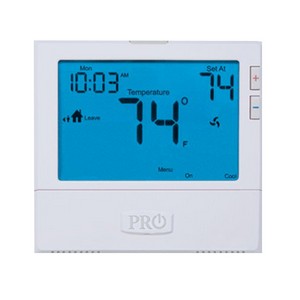

PRO® T800 LCD Single Stage 5-1-1 or 7 Day 1 Heat/1 Cool Programmable Thermostat

PRO® T800 LCD Single Stage 5-1-1 or 7 Day 1 Heat/1 Cool Programmable Thermostat



Pro1 IAQ T805

  • Mfg.Part # : T805
  • Mfg.Name : Pro1 IAQ
  • Part # : RH411064
  • UPC # : 689076825863
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

PRO1 specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. All of our products are designed to accommodate the performance and reliability demands of professional heating and cooling technicians. Heating and cooling accounts for almost half of our annual home energy consumption. You can personally reduce nearly 2,000 pounds of carbon emissions annually with a few simple adjustments. The American Council for an Energy Efficient Economy has more tips for saving energy on heating and cooling


  • 7 Day or 5/1/1 progammable
  • Auto Changeover
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 8 sq. inch display
  • Blue backlight
  • Glow in the dark light button
  • Programmable fan
  • Electric or Gas configurable
  • Room temperature calibration adjustment
  • Separate heating and cooling swing (cycle rate) adjustments
  • Heating and cooling setpoint limits
  • 5 minute compressor delay protection (selectable on or off)
  • Filter change indicator(selectable on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24v power

Thermostat, 5-1-1 or 7 Day Programmable, Single Stage, 1 Heat Stages, 1 Cool Stages, Terminal Designation: RH, RC, C, Y, W, G, B, O, LCD Display, Key Pad Lockout, Programmable Fan, De , Filter Indicator, Low Battery Indicator, Battery or Hardwired Power Source, 18 to 30VAC Volt, Wall or Junction Box Mount, 4.4 inch Height, 4.7 inch Width, 1.1 inch Depth, Standards: NEC Class II, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Heat-Cool-Off-Auto System Switching

  • Type: 5-1-1 or 7 Day Programmable, Single Stage
  • No. of Heat Stages: 1
  • No. of Cool Stages: 1
  • Terminal Designation: RH, RC, C, Y, W, G, B, O
  • Display: LCD
  • Key Pad Lockout: Yes
  • Programmable Fan: Yes
  • Humidification Control: No
  • Dehumidification Control: No
  • Remote Sensing Capability: No
  • Filter Indicator: Yes
  • Low Battery Indicator: Yes
  • Power Source: Battery or Hardwired
  • Voltage Rating: 18 to 30VAC
  • Mounting: Wall or Junction Box
  • Height: 4.4 inch
  • Width: 4.7 inch
  • Depth: 1.1 inch
  • Fan Switching: Auto-On
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Heat-Cool-Off-Auto
  • Frequency Rating: 50 to 60 Hz
  • Operating Ambient temperature: 32 to 105 Deg F
  • User Interface: Push Button
  • Standards: NEC Class II
