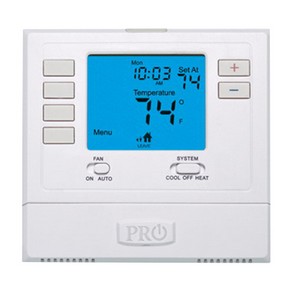

PRO® T700 LCD 5-1-1 Day 2 Heat/2 Cool Programmable Thermostat

PRO® T700 LCD 5-1-1 Day 2 Heat/2 Cool Programmable Thermostat



Pro1 IAQ T715

  • Mfg.Part # : T715
  • Mfg.Name : Pro1 IAQ
  • Part # : RH411062
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

PRO1 specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. All of our products are designed to accommodate the performance and reliability demands of professional heating and cooling technicians. Heating and cooling accounts for almost half of our annual home energy consumption. You can personally reduce nearly 2,000 pounds of carbon emissions annually with a few simple adjustments. The American Council for an Energy Efficient Economy has more tips for saving energy on heating and cooling. Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments. 5 minute compressor delay protection (selectable on or off). Filter change indicator (selectable on or off). 5 minute compressor delay protection (selectable on or off)


  • 5/1/1 programmable
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • 4 sq. inch display
  • Blue back-light
  • Glow in the dark light button
  • Easy access battery compartment
  • Electric or Gas configurable
  • Separate B & O terminals
  • Separate heating and cooling swing (cycle rate) adjustments including 2nd stage adjustments
  • Filter change indicator (select-able on or off)
  • Room temperature calibration adjustments
  • 5 minute compressor delay protection (select-able on or off)
  • Simple private label badge system
  • Easy wire color coded terminal blocks
  • Universal sub-base
  • Mounts on wall or junction box
  • Battery or 24V power
  • 5 year warranty

Thermostat, 5-1-1 Day Programmable, 2 Heat Stages, 2 Cool Stages, Terminal Designation: R, C, Y, Y2, W, W2, G, LCD Display, De , Filter Indicator, Low Battery Indicator, Battery or Hardwired Power Source, 18 to 30VAC Volt, Wall or Junction Box Mount, 4.4 inch Height, 4.7 inch Width, 1.1 inch Depth, Standards: NEC Class II, Auto-On Fan Switching, 50 to 60 Hz Frequency, Humidity Range: 90% Non-Condensing Maximum, Heat-Cool-Off System Switching

  • Type: 5-1-1 Day Programmable
  • No. of Heat Stages: 2
  • No. of Cool Stages: 2
  • Terminal Designation: R, C, Y, Y2, W, W2, G
  • Display: LCD
  • Key Pad Lockout: No
  • Programmable Fan: No
  • Humidification Control: No
  • Dehumidification Control: No
  • Remote Sensing Capability: No
  • Filter Indicator: Yes
  • Low Battery Indicator: Yes
  • Power Source: Battery or Hardwired
  • Voltage Rating: 18 to 30VAC
  • Mounting: Wall or Junction Box
  • Height: 4.4 inch
  • Width: 4.7 inch
  • Depth: 1.1 inch
  • Fan Switching: Auto-On
  • Humidity Range: 90% Non-Condensing Maximum
  • System Switching: Heat-Cool-Off
  • Frequency Rating: 50 to 60 Hz
  • Operating Ambient temperature: 32 to 105 Deg F
  • User Interface: Push Button
  • Standards: NEC Class II
