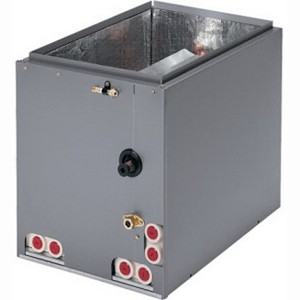

Armstong EM1P 1 Multi-Position Evaporator Coil, 3 Ton, 600 - 2400 cfm, 25-1/2 inch W x 21 inch D x 21 inch H

Armstong EM1P 1 Multi-Position Evaporator Coil, 3 Ton, 600 - 2400 cfm, 25-1/2 inch W x 21 inch D x 21 inch H



Allied Air Enterprises EM1P36C

  • Mfg.Part # : EM1P36C
  • Mfg.Name : Allied Air Enterprises
  • Part # : AREM1P36C
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Upflow/Horizontal (EM1P) for application flexibility
  • Two dual drain connections on front of coil for install flexibility of drain lines around furnace vent and utility connections
  • Tubing located at door split for easy coil service or coil cleaning
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • Foil-face insulation for easy cleaning
  • External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
  • Evaporator coils are specially designed and sized to match Armstrong air heating and cooling products. When you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
  • Armstrong air coils feature MHT™ technology, rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air for maximum heat transfer and efficiency
  • All piston coils are compatible with R22 or R410A
  • All drain pans are compatible with UV lights

Evaporator Coil, EM1P1 Series, Multi-Position, 3 ton Capacity, UV Resistant Drain Pan, Suction Line Size: 7/8 inch, Liquid Line Size: 3/8 inch, 600 to 2400 cfm, Platinum Gray, Standards: cUL, AHRI Certified, For Use With: Cabinet Furnaces

  • Series: EM1P1
  • Type: Multi-Position
  • Capacity: 3 ton
  • For Use With: Cabinet Furnaces
  • Drain Pan: UV Resistant
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • CFM: 600 to 2400 cfm
  • Color: Platinum Gray
  • Dimension B: 25-1/2 inch
  • Dimension C: 19-1/2 inch
  • Dimension D: 20 inch
  • Dimension E: 19-1/2 inch
  • Dimension F: 20-1/2 inch
  • Dimension G: 21 inch
  • Expansion Device: 1P (Piston)
  • Matching Gas Furnace Cabinet Width: 21 inch
  • Orifice: 0.073 inch
  • Standards: cUL, AHRI Certified
