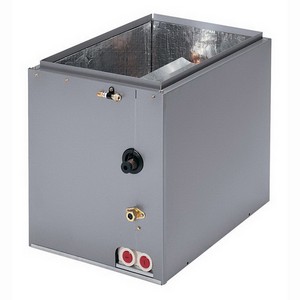

Armstong EC1P 1 Cased Upflow Evaporator Coil, 2 Ton, 600 - 2400 cfm, 18-1/2 inch W x 14-1/2 inch D x 21 inch H

Armstong EC1P 1 Cased Upflow Evaporator Coil, 2 Ton, 600 - 2400 cfm, 18-1/2 inch W x 14-1/2 inch D x 21 inch H



Allied Air Enterprises EC1P23AG-1

  • Mfg.Part # : EC1P23AG-1
  • Mfg.Name : Allied Air Enterprises
  • Part # : AREC1P23AG1
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Upflow/Counterflow (EC1P) for application flexibility
  • Two dual drain connections on front of coil for install flexibility of drain lines around furnace vent and utility connections
  • Tubing located at door split for easy coil service or coil cleaning
  • One of the lowest water retention drain pans in the industry to minimize mold and mildew growth
  • Microban® antimicrobial additive in the drain pan to resist mold and mildew growth
  • Interlocking door assemblies and snug line seal grommets to minimize air leakage
  • Foil-face insulation for easy cleaning
  • External cabinet mounted distributor body designed for easy changing of orifice sizes and fast TXV connections
  • Evaporator coils are specially designed and sized to match Armstrong air heating and cooling products. When you add a matching coil, you get a system that runs at peak performance while maximizing efficiency
  • Armstrong air coils feature MHT™ technology, rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air for maximum heat transfer and efficiency
  • All piston coils are compatible with R22 or R410A
  • All drain pans are compatible with UV lights

Evaporator Coil, Cased, Upflow, EC1P1 Series, 2 ton Capacity, UV Resistant Drain Pan, Suction Line Size: 3/4 inch, Liquid Line Size: 3/8 inch, 600 to 2400 cfm, Platinum Gray, Standards: cUL, AHRI Certified, For Use With: Cabinet Furnaces

  • Series: EC1P1
  • Type: Cased, Upflow
  • Capacity: 2 ton
  • For Use With: Cabinet Furnaces
  • Drain Pan: UV Resistant
  • Suction Line Size: 3/4 inch
  • Liquid Line Size: 3/8 inch
  • CFM: 600 to 2400 cfm
  • Color: Platinum Gray
  • Dimension B: 18-1/2 inch
  • Dimension C: 13 inch
  • Dimension D: 13-1/2 inch
  • Dimension E: 18 inch
  • Dimension F: 20-1/2 inch
  • Dimension G: 21 inch
  • Expansion Device: 1P (Piston)
  • Matching Gas Furnace Cabinet Width: 14.5 inch
  • Orifice: 0.057 inch
  • Standards: cUL, AHRI Certified
