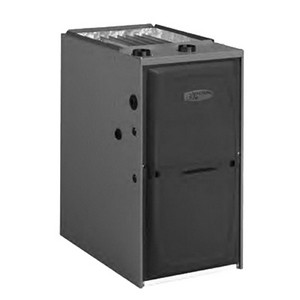

Armstrong™ 67W00 95% AFUE Upflow/Horizontal Variable Speed Gas Furnace, 4 Ton, 88000 BTU/h, 21 inch x 33 inch x 28-1/2 inch

Armstrong™ 67W00 95% AFUE Upflow/Horizontal Variable Speed Gas Furnace, 4 Ton, 88000 BTU/h, 21 inch x 33 inch x 28-1/2 inch



Allied Air Enterprises A95UH2V090C16S

  • Mfg.Part # : A95UH2V090C16S
  • Mfg.Name : Allied Air Enterprises
  • Part # : ARA95UH2V090C16S
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Zero step horizontal conversion
  • Vent materials for Canadian applications must comply with ULC S636
  • Unitized construction for cabinet integrity, heat exchanger compartment and blower compartment insulated to increase efficiency and reduce sound levels
  • System Sentry™ control retains last five (5) fault codes with push button memory recall, regardless of power interruption
  • Removable floor base (upflow/horizontal units) for bottom return air
  • Non-welded crimped S-curve primary heat exchanger design for maximum durability
  • Left or right gas and electric entry
  • Isolated burner enclosure for quiet operation
  • Integrated ignition and fan control
  • Hot surface ignition system uses silicon nitride ignitor, control features 120 Volt electronic air cleaner and humidifier terminals
  • Efficient ECM variable speed blower motor, motor features soft start and soft stop for quiet operation
  • Dynamically balanced blower wheel with resilient motor mounts for smooth and quiet operation
  • Control circuit is fuse protected
  • Compatible with single or two stage thermostats for heating
  • Active and passive dehumidification feature, easily removable slide-out blower design
  • 2-speed induced draft motor with stainless steel shaft, steel ball bearings, and fan cooled for long life
  • 10 year limited parts warranty / lifetime heat exchanger warranty available

Gas Furnace, Variable Speed, Upflow/Horizontal Airflow, 95% AFUE, 95% Efficiency, Capacity in Ton: 4 ton, 1005 to 1605 cfm at 0.10 inch to 0.80 inch W.C. CFM, Heating Capacity Input: 88000 BTUH, Heating Capacity Output: 85000 BTUH, 45 to 75 Deg F High Fire Temp. Rise, Horse Power: 3/4 HP, 2 Speeds, 409 Stainless Steel Heat Exchanger, Construction: Two Stage, Transformer Rating: 40VA, Warm Air Supply Dimension: 23 inch x 14 inch, 9-3/8 inch Centerline - Flue to Side (E), Electrical Supply: 12V, 60 Hz, Single Phase, 21 inch Width, 33 inch Height, 28-1/2 inch Depth, 1/2 inch Gas Connection, Nominal FLA: 10.1A, Time Delay Breaker or Fuse: 15A Min., Blower Size: 11 inch x 11 inch, 10 yr Warranty

  • Type: Variable Speed
  • Airflow: Upflow/Horizontal
  • AFUE: 95%
  • Efficiency: 95%
  • Capacity in Ton: 4 ton
  • CFM: 1005 to 1605 cfm at 0.10 inch to 0.80 inch W.C.
  • Heating Capacity Input: 88000 BTUH
  • Height: 33 inch
  • Heating Capacity Output: 85000 BTUH
  • Temperature Rise: 45 to 75 Deg F High Fire
  • Width: 21 inch
  • Horse Power: 3/4 HP
  • No. of Speeds: 2
  • Material: 409 Stainless Steel Heat Exchanger
  • Construction: Two Stage
  • Transformer Rating: 40VA
  • Warm Air Supply Dimension: 23 inch x 14 inch
  • Centerline - Flue to Side (E): 9-3/8 inch
  • Electrical Supply: 12V, 60 Hz, Single Phase
  • Depth: 28-1/2 inch
  • Gas Connection: 1/2 inch
  • Warranty: 10 yr
  • Nominal FLA: 10.1A
  • Time Delay Breaker or Fuse: 15A Min.
  • Blower Size: 11 inch x 11 inch
  • Airflow Dimension: A:21 inch, B:19-7/8 inch, C:19-1/2 inch
