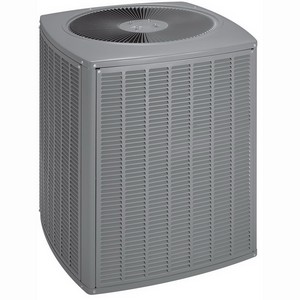

Allied Air® 1 Series 13-SEER R-410A Louvered Commercial Split System Heat Pump, 3 Ton, 36000 BtuH

Allied Air® 1 Series 13-SEER R-410A Louvered Commercial Split System Heat Pump, 3 Ton, 36000 BtuH



Allied Air Enterprises 4SHP13LC136T

  • Mfg.Part # : 4SHP13LC136T
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4SHP13LC136T
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Rounded corners for safety and attractive, clean appearance
  • Reliable, solid-state, time-initiated, temperature-terminated defrost system
  • Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Raised base pan with ports allows for excellent water and debris drainage
  • R410A refrigerant
  • Internally protected against high temperature motor overload conditions
  • High-efficiency scroll compressor
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panels remove with just two screws per panel for easy coil cleaning and service
  • Full metal louvered panel coil guard protection
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for high efficiency and capacity
  • Discharge muffler for quiet operation
  • Controls located in corner post for easy installation and service
  • Bi-directional filter drier for long-lasting durability and system protection

Heat Pump, Louvered Commercial, 1 Series, Split System Unit, Cooling Capacity: 36000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 3 ton, Horse Power: 1/5 HP, 208 to 230V Volt, 60 Hz Hertz, 3-Phase Phase, Min. Circuit Amp: 14.2A, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 76 dBa, Dimensions: 29-3/4 inch H x 24-3/4 inch D x 26-3/4 inch W, Standards: UL Listed, AHRI Cirtified, 202 lb Weight, 1 yr Warranty

  • Series: 1
  • Type: Louvered Commercial
  • Unit Type: Split System
  • Cooling Capacity: 36000 BTUH
  • SEER: 13
  • Voltage Rating: 208 to 230V
  • EER: 11
  • Capacity in Ton: 3 ton
  • Phase: 3-Phase
  • Horse Power: 1/5 HP
  • Hertz: 60 Hz
  • Min. Circuit Amp: 14.2A
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Sound Rating: 76 dBa
  • Dimensions: 29-3/4 inch H x 24-3/4 inch D x 26-3/4 inch W
  • Energy Star: No
  • Weight: 202 lb
  • Warranty: 1 yr
  • Refrigerant Type: R-410A
  • Nominal RPM: 1075
  • Standards: UL Listed, AHRI Cirtified
