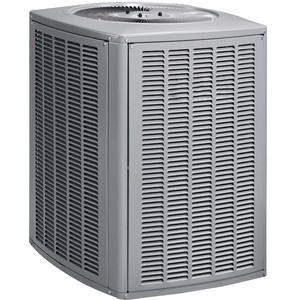

Armstrong Air® 1 Series 13-SEER R-410A Standard-Efficiency Split System Heat Pump, 3.5 Ton, 42000 BtuH

Armstrong Air® 1 Series 13-SEER R-410A Standard-Efficiency Split System Heat Pump, 3.5 Ton, 42000 BtuH



Allied Air Enterprises 4SHP13LB142P

  • Mfg.Part # : 4SHP13LB142P
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4SHP13LB142P
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Rounded corners for safety and attractive, clean appearance
  • Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Raised base pan with ports allows for excellent water and debris drainage
  • R410A refrigerant
  • PVC-coated wire fan discharge grill
  • Internally protected against high temperature motor overload conditions
  • High-efficiency scroll compressor
  • Heavy-duty compressor sound blanket for quiet operation
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panel coil guard protection
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for high efficiency and capacity
  • Controls located in corner post for easy installation and service

Heat Pump, Standard-Efficiency, 1 Series, Split System Unit, Cooling Capacity: 42000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 3.5 ton, Horse Power: 1/4 HP, 208 to 230V Volt, 60 Hz Hertz, 1-Phase Phase, Min. Circuit Amp: 27.8A, 45A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 76 dBa, Dimensions: 43.75 inch H x 29.38 inch D x 31.25 inch W, Standards: ETL Listed, AHRI Cirtified, 253 lb Weight, 10 yr Warranty

  • Series: 1
  • Type: Standard-Efficiency
  • Unit Type: Split System
  • Cooling Capacity: 42000 BTUH
  • SEER: 13
  • Voltage Rating: 208 to 230V
  • EER: 11
  • Capacity in Ton: 3.5 ton
  • Phase: 1-Phase
  • Horse Power: 1/4 HP
  • Hertz: 60 Hz
  • Min. Circuit Amp: 27.8A
  • Max. Fuse Amp: 45A
  • Suction Line Size: 7/8 inch
  • Liquid Line Size: 3/8 inch
  • Sound Rating: 76 dBa
  • Dimensions: 43.75 inch H x 29.38 inch D x 31.25 inch W
  • Energy Star: No
  • Weight: 253 lb
  • Warranty: 10 yr
  • Refrigerant Type: R-410A
  • Nominal RPM: 825
  • Standards: ETL Listed, AHRI Cirtified
