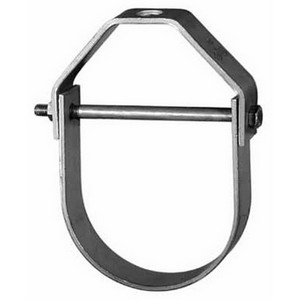

Grinnell® 260 Carbon Steel Adjustable Clevis Hanger, 10 inch, Black

Grinnell® 260 Carbon Steel Adjustable Clevis Hanger, 10 inch, Black



Anvil International BCH10

  • Mfg.Part # : BCH10
  • Mfg.Name : Anvil International
  • Part # : BCH10
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Sizes 5 inch and up have rod and two nuts instead of bolt and nut, thread length on clevis rod is such that the thread locks the nuts in place and threads are not in shear plane
  • Design has yoke on outside of lower U-strap so yoke cannot slide toward center of bolt, thus bending of bolt is minimized

Clevis Hanger, Adjustable, 260 Series, Nominal Size: 10 inch, Rod Size 7/8 inch, 8-7/16 inch Rod Take-Out, 22 ft Span, 1-3/4 inch Lower Width, 2-1/8 inch Adjustment, Carbon Steel, Black Finish, 3600 lb Max. Load, Temperature Rating: 450 Deg F, Standards: Complies with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1), ANSI/MSS SP-69 and MSS SP-58 (Type 1). UL, ULC and FM Approved

  • Series: 260
  • Type: Adjustable
  • Nominal Size: 10 inch
  • Rod Size: 7/8 inch
  • Rod Take-Out: 8-7/16 inch
  • Adjustment: 2-1/8 inch
  • Lower Width: 1-3/4 inch
  • Max. Load: 3600 lb
  • Material: Carbon Steel
  • Finish: Black
  • Span: 22 ft
  • Temperature Rating: 450 Deg F
  • Standards: Complies with Federal Specification A-A-1192A (Type 1), WW-H-171-E (Type 1), ANSI/MSS SP-69 and MSS SP-58 (Type 1). UL, ULC and FM Approved
