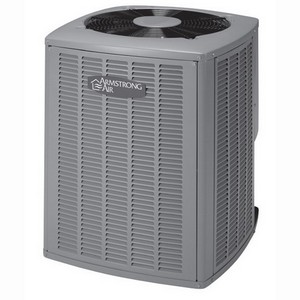

Armstrong 4SCU18LT1 18-SEER R-410A Split System Outdoor Louvered Two-Stage Condensing Unit, 3 Ton, 36000 Btu/h

Armstrong 4SCU18LT1 18-SEER R-410A Split System Outdoor Louvered Two-Stage Condensing Unit, 3 Ton, 36000 Btu/h



Allied Air Enterprises 4SCU18LT136P

  • Mfg.Part # : 4SCU18LT136P
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4SCU18LT136P
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

  • Variable speed condenser fan motor with swept-wing fan blade
  • Trade available components
  • Service valves positioned for quick installation and easy service
  • Rounded corners for safety and attractive, clean appearance
  • R410A refrigerant
  • PVC coated wire fan discharge grill
  • Internally protected against high temperature motor overload conditions
  • High-efficiency 2 stage Copeland UltraTech™ scroll compressor
  • High and low pressure switches factory installed
  • Heavy-duty compressor sound blanket for quiet operation
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panels remove easily for coil cleaning and service
  • Factory installed crank case heater
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for higher efficency and capacity. Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Controls located in corner post for easy installation and service
  • Comfort Alert 2™ diagnostics is factory installed
  • Bi-flow filter drier factory installed for system protection

Condensing Unit, Split System, 4SCU18LT1 Series, Outdoor, Louvered Two-Stage Unit, Cooling Capacity: 36000 BTUH, 18 SEER, 13 EER, Capacity in Ton: 3 ton, Horse Power: 1/3 HP, 230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 23.7A, 40A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 75 dBa, Dimensions: 37.66 inch L x 35.66 inch W x 44 inch H, Energy Star, Standards: AHRI Certified, UL & cUL Listed, 297 lb Weight, 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts Warranty

  • Series: 4SCU18LT1
  • Type: Split System
  • Unit Type: Outdoor, Louvered Two-Stage
  • Cooling Capacity: 36000 BTUH
  • Voltage Rating: 230V
  • EER: 13
  • SEER: 18
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Capacity in Ton: 3 ton
  • Liquid Line Size: 3/8 inch
  • Horse Power: 1/3 HP
  • Suction Line Size: 7/8 inch
  • Min. Circuit Amp: 23.7A
  • Max. Fuse Amp: 40A
  • Dimensions: 37.66 inch L x 35.66 inch W x 44 inch H
  • Sound Rating: 75 dBa
  • Weight: 297 lb
  • Energy Star: Yes
  • Refrigerant: R-410A
  • Warranty: 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts
  • Locked Rotor Amperage: 82A
  • Nominal RPM[Fan Motor]: 825
  • Rated Load Amperage[Compressor]: 16.6A
  • Rated Load Amperage[Fan Motor]: 0.6A
  • Refrigeration Charge: 240 oz
  • Standards: AHRI Certified, UL & cUL Listed
